Small Pouch Bag Filling Machine Automatic Bagging System 1.8kw

Small Pouch Bag Filling Machine Automatic Bagging System 1.8kw

  • High Light

    jumbo bag filling machine


    bag packaging equipment

  • Machine Size
  • Suitable Material
    Small Granulars, Food, Peanut ,sweets, Sesame,sugar, Etc
  • Power
  • Compressed Air
    No Need
  • Package
    Plywood Cases
  • Drive Type
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Standard Export Plywood Cases
  • Delivery Time
    50 days after receive down payment
  • Supply Ability
    20 sets every month

Small Pouch Bag Filling Machine Automatic Bagging System 1.8kw

50g-1000g DXD-350K Small Pouch Bag Automatic Bagging Machine; Pouch Bag Filling Machine



Techmical Parameters:



Bagging weight range


Packing speed

20-50bags/min(depend by material and specifiction)

Bag Material

width:80-200mm; length: 100-240mm need change former

Packing Film

Gas consumption


Power voltage

220VAC single phase




Suitable material :

sweets, sesame,sugar, sugar stick, salt,peanuts,spice,rice,corn,melon seeds,shrimp,oatmeal,instant drink,desiccant,pepper,washing powder, nuts seeds, grain,cocoa powder,instant coffee and tea etc.

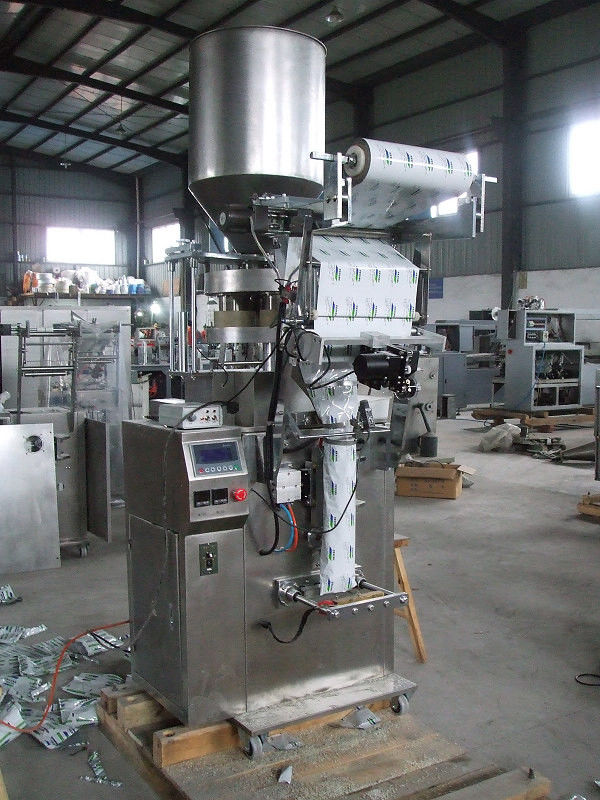

Machine description:

Machine adopts a Japan Mitsubishi PLC programmable controller and matches with English and Chinese display screens. It is controlled by Micro-computer operation interface. Thus, it's easy to operate, convenient in adjustment and super automatic. Can set the length of bag with fully automatic by micro-computer control center.
Machine body is full stainless steel. Measured with granule measure cups system, this machine can be adjusted at will in the rated materials, and finish the functions such as bag making, measuring, filling, sealing, cutting, counting and produce date printing in the meanwhile.
Photoelectric tracking system and two way compensate function are adopted to ensure the automatic correcting of double face printing design on packing bag. It can setup the pouch length directly at the tender side at the same time, and do step-less adjustment to the pouch length at the pouch length range.
