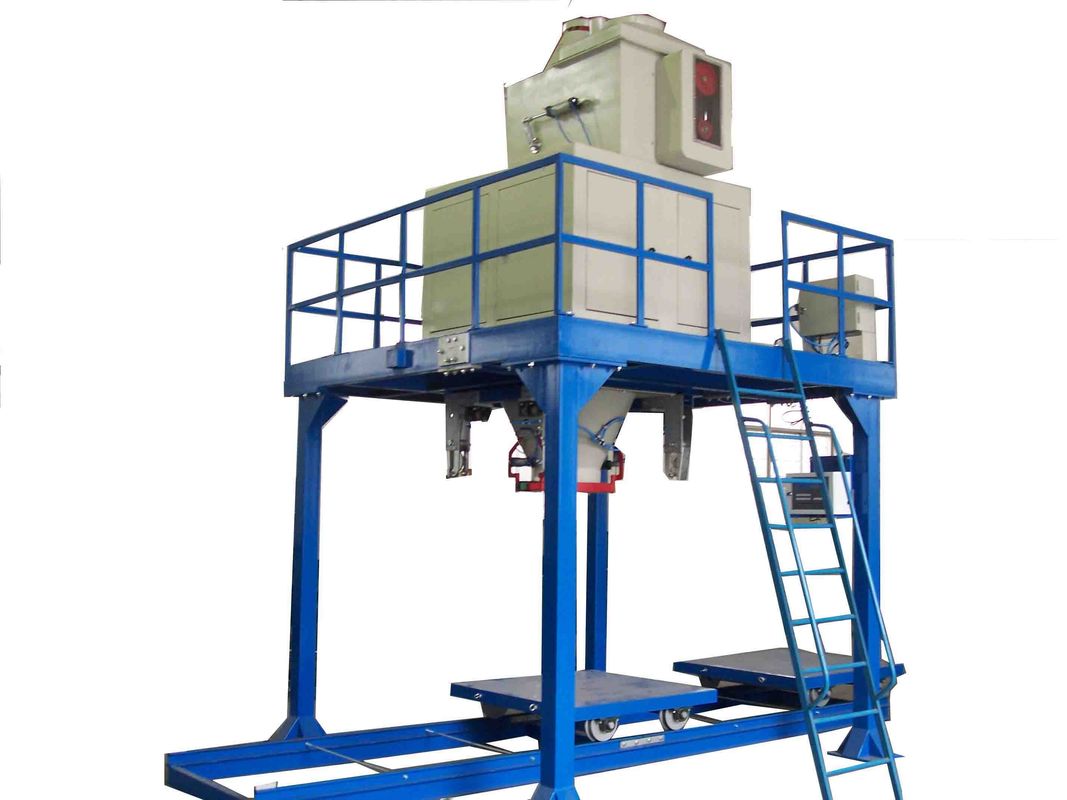

Granular Jumbo Bag Packing Machine Filling 80 Bags/Hour H5600

Granular Jumbo Bag Packing Machine Filling 80 Bags/Hour H5600

  • High Light

    Granular Jumbo Bag Packing Machine


    80bags/hour Bag Packing Machine


    H5600 Bag Packing Machine

  • Dimension(LWH/cm)
    L5500 W2500 H5600
  • Application
    Grain, Food, Feed, Fertilizer, Chemical ,Energy Etc
  • Bag Size(mm)
  • Voltage
  • Packaging Speed
    40-80 Bags/hour
  • Power
  • Standard
  • Automatic Grade
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
    DCS-2000kg *2
  • Minimum Order Quantity
    1 Set/Sets
  • Price
  • Packaging Details
    Standard Export Wooden Case
  • Delivery Time
    20 working days after received your payment
  • Payment Terms
  • Supply Ability
    20 Set/Sets per Month

Granular Jumbo Bag Packing Machine Filling 80 Bags/Hour H5600

Granular Jumbo Bag Packing Machine Big Bag Filling Machine


Suitable Material:

All kinds of granular ,Pellet material

Like: Sugar, Feed, Soybean Meal, Soybean, Corn, Wheat, Rice,Wood Pellet, Fertilizer, Urea, Chemical granular; PVC; PE etc


Technical parameters:

Product name  jumbo bag filling machine
Weighing error (KG) 50± 0.5
Qualified rate of bag weight (%) 95% for jumbo bag filling machine
Output (T/H)  ≥ 50-100T


Weight range(KG ) 500-2000kg and can be adjusted

Production capacity(bags/hr)


Supply voltage

380v/220v,50HZ(can customized)
Air supply pressure 0.5~0.6Mpa for jumbo bag filling machine
air consumption CFM 2m3/min
temperature   -20~40°C
Working Humidity  <95% (without condensated water)


Functions and Features


1.  Automatic clamp and release the bags.
2.  Imported technology weighing controller, Loadcell, pneumatic actuator components.
3.  Equipped with high-precision AC power supply to ensure stable and reliable working.
4.  Reserved RS232/485 serial port can be used with the external management system for data. communications.


Our Advantage:

1. Use Gravity valve feeding system .

2. Ensure whole machine life after online sales service .

3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.


Operation process:

Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge->Automatic roller conveyor transportation-->Next Round


Main Structure:

1. Automatic filling system  (Gravity valve feeder--two gates)

2. Automatic weighing balance

3. Ton-bag clipper

4. Automatic rolling conveyor(if needed)

5. Electric control cabinet
