Automatic Pouch Bag Filling Packaging Machine 4 Nozzle Standup Crouches Juice Jam

Automatic Pouch Bag Filling Packaging Machine 4 Nozzle Standup Crouches Juice Jam

  • High Light

    Bag Pouch Standup Filling Packaging Machine

    ,

    4 Nozzle Bag Filling Packaging Machine

    ,

    Bag Filling Packaging Machine 5KW

  • Dimension(LWH/cm)
    L2500 W2500 H3200
  • Application
    Food, Feed, Fertilizer, Chemical ,Energy Etc
  • Bag Size(mm)
    Customized
  • Voltage
    220V-380V
  • Packaging Speed
    5-30 Bags/hour
  • Power
    5KW
  • Standard
    CE
  • Automatic Grade
    Automatic
  • Place of Origin
    China
  • Brand Name
    RL
  • Certification
    CE
  • Model Number
    DCS-MT-GROSS
  • Minimum Order Quantity
    1 Set/Sets
  • Price
    negotiation
  • Packaging Details
    Standard Export Wooden Case
  • Delivery Time
    20 working days after received your payment
  • Payment Terms
    L/C,T/T
  • Supply Ability
    20 Set/Sets per Month

Automatic Pouch Bag Filling Packaging Machine 4 Nozzle Standup Crouches Juice Jam

Automatic 4 Nozzle Big Bag Pouch Standup Crouches Juice Jam Pouch Filling Packaging Machine



Technical parameters:

Product name  jumbo bag filling machine
Weighing error (KG) 50± 0.5
Qualified rate of bag weight (%) 95% for jumbo bag filling machine
Output (T/H)  ≥ 25-40

Power(KW)

5kW for jumbo bag filling machine
Weight range(KG ) 500-2000kg and can be adjusted

Production capacity(bags/hr)

5-40bags/hour

Supply voltage

380v/220v,50HZ(can customized)
Air supply pressure 0.5~0.6Mpa for jumbo bag filling machine
air consumption CFM 0.8-1m3/min
temperature   -20~40°C
Working Humidity  <95% (without condensated water)




Functions and Features



1.  Automatic clamp and release the bags.
2.  Imported technology weighing controller, Loadcell, pneumatic actuator components.
3.  Equipped with high-precision AC power supply to ensure stable and reliable working.
4.  Reserved RS232/485 serial port can be used with the external management system for data. communications.






Our Advantage:



1. Use leading technology of feeding system ,combine inveter to adjust all necessary motor speed.

2. Ensure whole machine life after online sales service .

3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.





Suitable Material:

Granular:Soybean Meal, Fertilizer, Granular, Pellet, Feed, PVC etc

Powder or block material



Operation process:

Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge->Automatic roller conveyor transportation-->Next Round

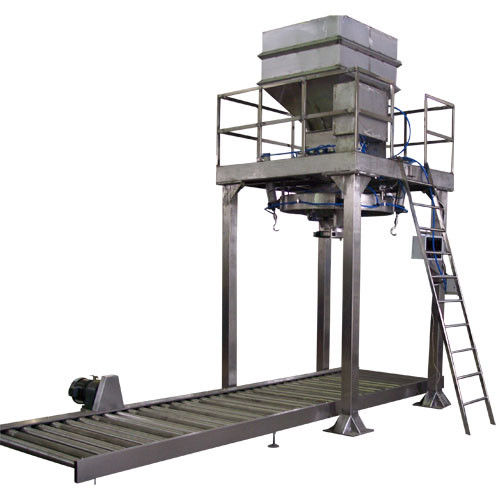

Main Structure:

1. Automatic filling system                   2.Automatic weighing balance

3. Ton-bag clipper                               4. Automatic rolling conveyor

5. Electric control cabinet
