400bags/hour Platform Automatic Weighing And Bagging Machine ;Semi-auto packing machine

400bags/hour Platform Automatic Weighing And Bagging Machine ;Semi-auto packing machine

  • High Light

    filling and packaging machines

    ,

    vertical bagging machines

  • Name
    Semi-automatic Bagging Machine
  • Machine Size
    3000*2200*3900mm
  • Suitable Material
    Grain, Feed ,PVC, Pellet, Granular
  • Power
    1.5kW
  • Compressed Air
    0.6m3/hour
  • Package
    Plywood Cases
  • Drive Type
    Pneumatic
  • Place of Origin
    CHINA
  • Brand Name
    RUILI
  • Certification
    CE
  • Model Number
    DCS-70A
  • Minimum Order Quantity
    1 set
  • Price
    negotation
  • Packaging Details
    Standard Export Plywood Cases
  • Delivery Time
    25 days after receive down payment
  • Supply Ability
    30 sets every month

400bags/hour Platform Automatic Weighing And Bagging Machine ;Semi-auto packing machine



400bags/hour Platform Type Grain Packing Machine; Soybean/ Wheat/ Malt Bagging Machine



Suitable Material:

Soybean Meal; Rapassed Meal; Soybean; Wheat; Malt etc in Grain and Feed factory

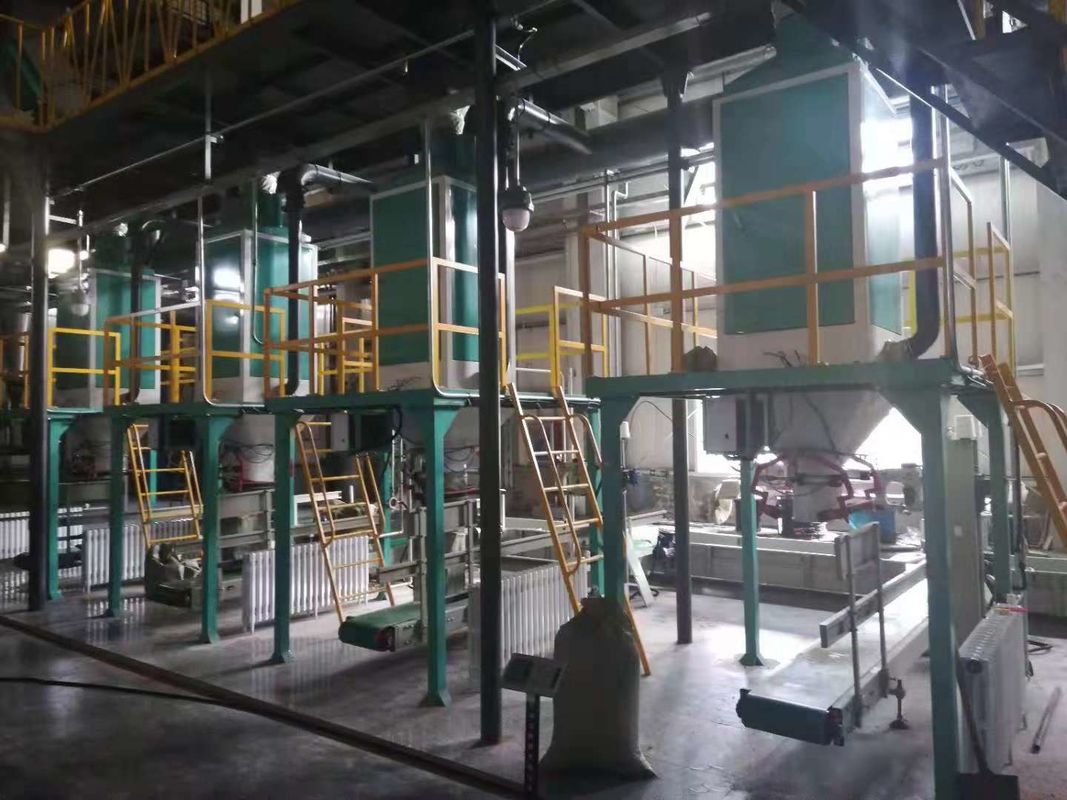

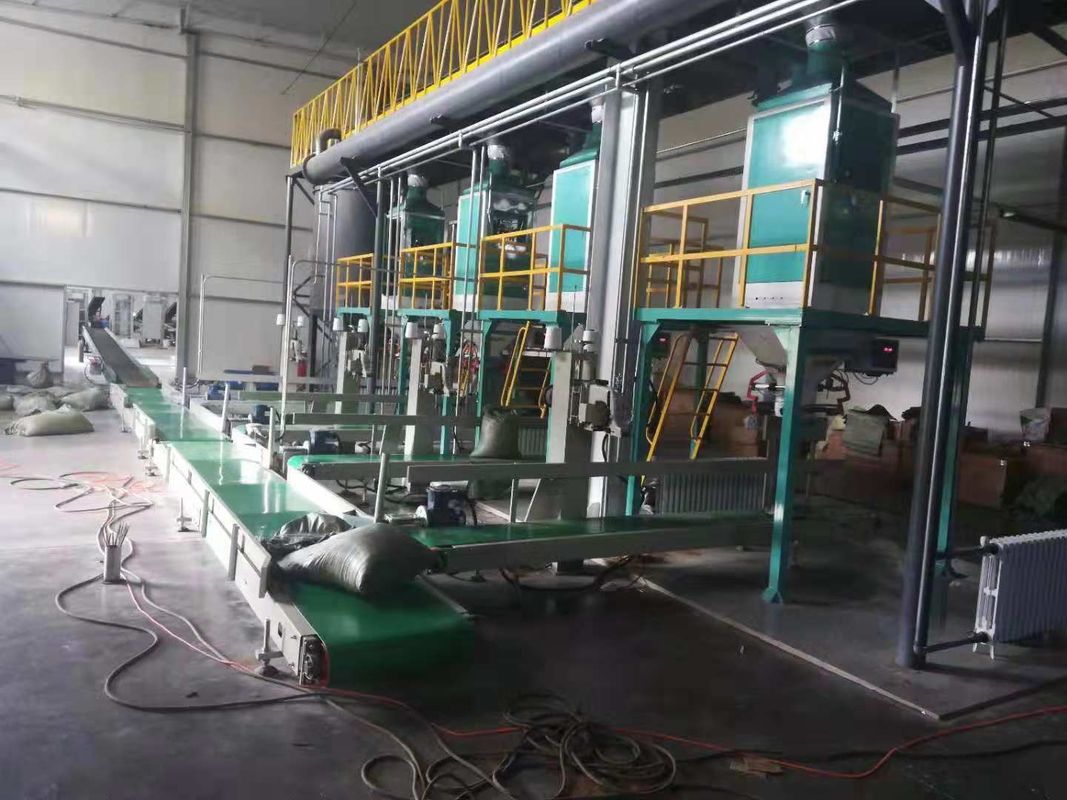

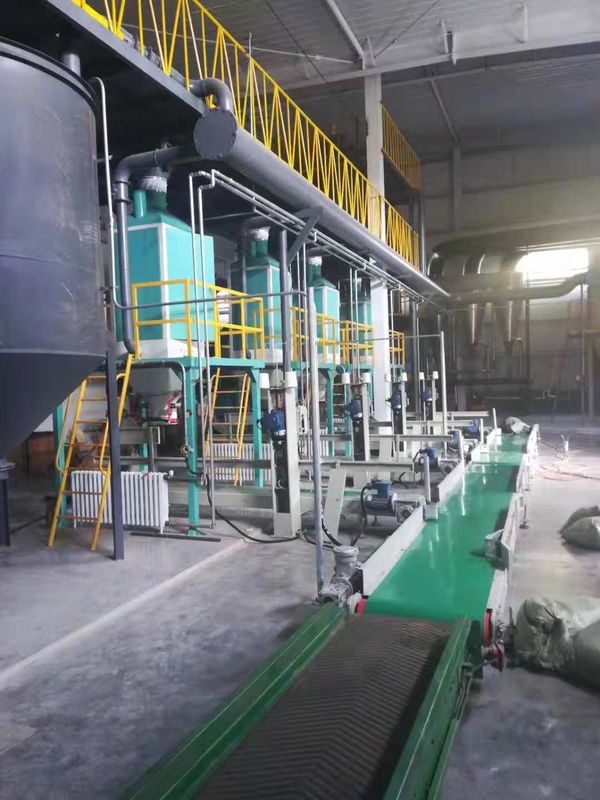

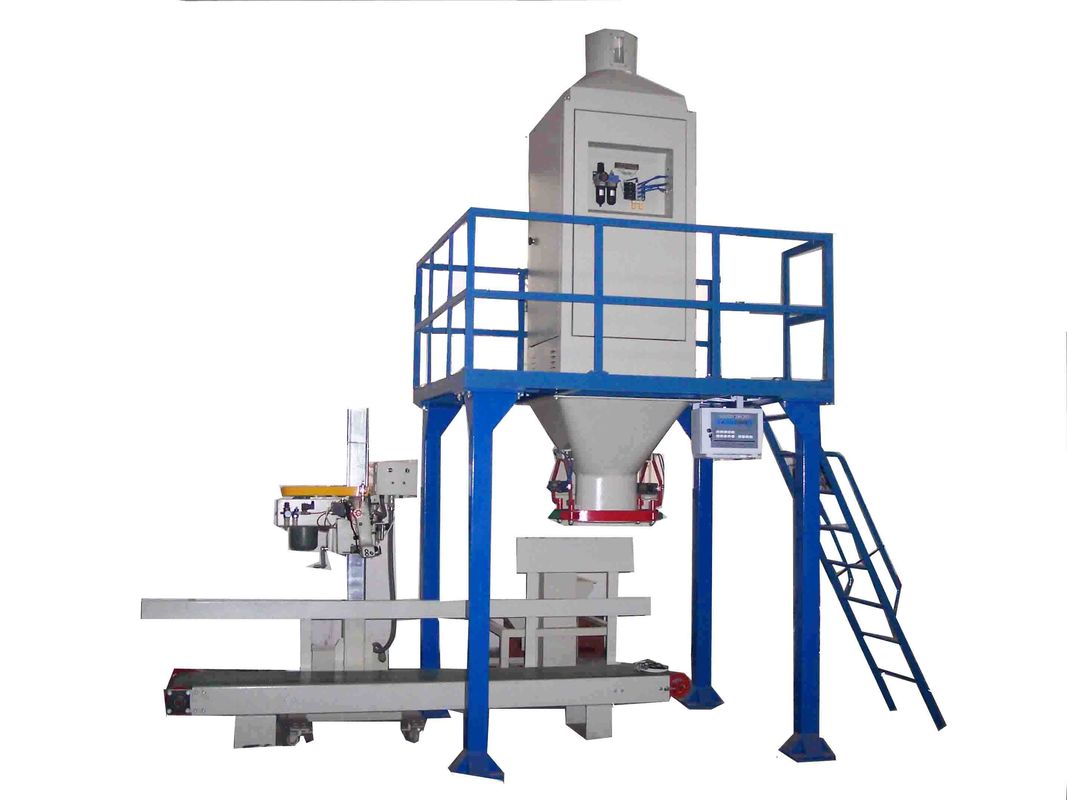

400bags/hour Platform Automatic Weighing And Bagging Machine ;Semi-auto packing machine 0400bags/hour Platform Automatic Weighing And Bagging Machine ;Semi-auto packing machine 1400bags/hour Platform Automatic Weighing And Bagging Machine ;Semi-auto packing machine 2



Semi-Automatic Filling Machine Technical Parameters:

Precision :+/-0.2%
Packing speed : 350-400bags per hour
Weighing scale : 50-90kg per bag
Power Supply : 220Va.c and 4N-380Va.c
Power Dissipation : 1.5kW
Compressed Air : >0.6MPa
Compressed Air Consume : 0.6m3 / per hour





Semo-automatic bagging machine Advantage:

1. Net Weighing System-- with Mettler Toledo Brand Load Cell

2. Use France Schneider brand electric parts

3. Use Taiwan or Japan or Germany pneumatic parts

4. Provide all life online after sales service

5. Machine designed and manufactured based on 10 years+ life.

6. Self-made weighing controller with over 10 alarm code, lock the problems very quick and online guide how to solve them in shortest time




Semi-automatic packing machine Main Structures:

1.Auto filling system--gravity valve feeder

2.Auto weighting balance--single hopper net weighing mode

3.Auto belt conveyor--3000X470mm

4.Auto sewing machine --GK35-6A

5.Electric control cabinet and weighing controller



Automatic Weighing machine Flowing Process:

Auto filling-->Auto dosing and weighting-->Manual place the empty bags on and touch the switch--> Weighed materials fill into bags and released to the conveyor automaticlly -->Auto bag conveyor-->Auto bag sewing-->Next round
