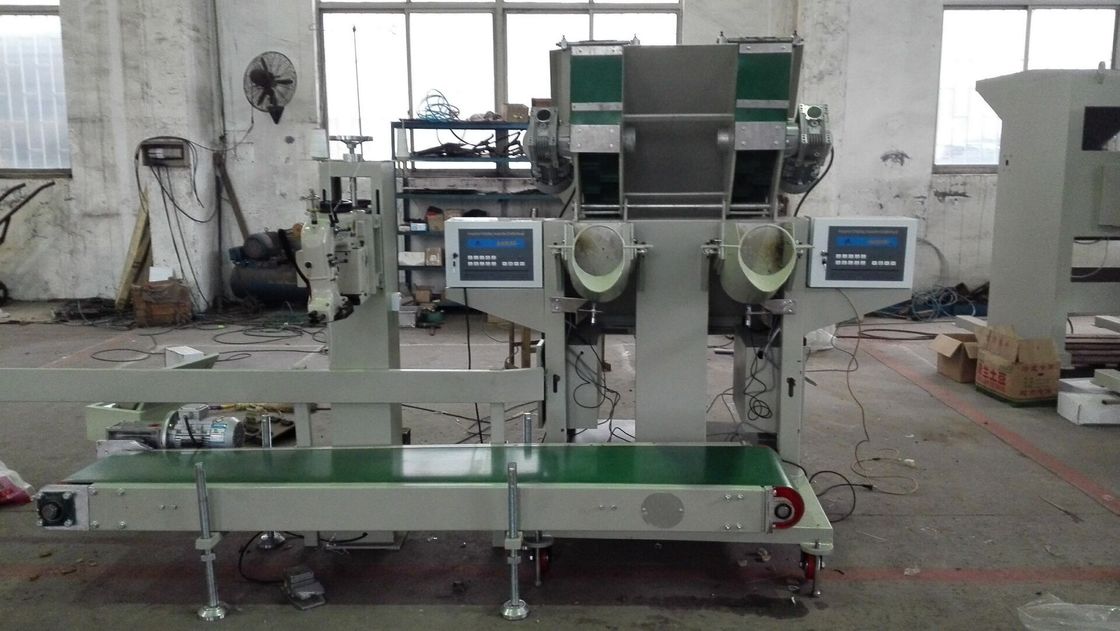

Professional Gravel / Marble Semi Automatic Bagging Machine With Conveyor Belt

Professional Gravel / Marble Semi Automatic Bagging Machine With Conveyor Belt

  • High Light

    filling and packaging machines


    Horizontal bagging machine

  • Dimension(LWH/cm)
    L2500 W1850 H1900
  • Application
    Mineral ,Energy, Food Industry
  • Bag Size(mm)
  • Voltage
  • Packaging Speed
    500-600 Bags/hour
  • Power
  • Standard
  • Automatic Grade
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
    DCS-10*2 MT
  • Minimum Order Quantity
    1 Set/Sets
  • Price
  • Packaging Details
    Standard Export Wooden Case
  • Delivery Time
    20 working days after received your payment
  • Payment Terms
  • Supply Ability
    20 Set/Sets per Month

Professional Gravel / Marble Semi Automatic Bagging Machine With Conveyor Belt

1-10kg/bag Automatic Stone Bagging Machine; Gravel/Marble/Pebble Bagging Machine 500-600bags/hour


Auto bagging weighing machine Suitable Material:

Stone, Gravel, Pebble, Press Coal, Lump Charcoal ,BBQ ,Potato, Onion


Semi-automatic filling machine Technical Parameters:

Precision :+/-2-3 material
Packing speed : 500-600bags per hour
Weighing scale : 1-10kg per bag
Power Supply : 220Va.c and 4N-380Va.c
Power Dissipation : 4kW
Compressed Air : No need
Compressed Air Consume : No need


Weigher packing machine Functions and Features


1. Dual line net weighing machine, pure electric drive.
2. Imported technology weighing controller, Loadcell, pneumatic actuator components.
3. Equipped with high-precision AC power supply to ensure stable and reliable working.
4. Reserved RS232/485 serial port can be used with the external management system for data. communications.
5. Combine leading multi-speed inclined Feeding conveyor together



Our Advantage:


1. Use leading technology of feeding system ,combine inveter to adjust all necessary motor speed.

2. Ensure whole machine life after online sales service .

3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.

4. Dual line net weighing type, increase the packing capacity double


Main Function:

Automatic filling system and dosing weighing balance

Automatic conveyor belt transportation

Automatic sewing or heat sealing machine(based on bag types)

Electric control cabinet and weighing controller


Main operation:

Auto weighing-->Manual place the bags into clamp bar dump the material-->Automatic belt conveyor transportation-->Bag sewed or sealed-->Next Round


Main parts use Mettler-Toledo Load Cell, SMC/CKD/AIRTAC/FESTO Pneumatic parts.

Main mechnical body design based on 8 years+ usage
