CHINA Semi Automatic Bagging Machine Apple / Orange / Potato Bagging Machine

CHINA Semi Automatic Bagging Machine Apple / Orange / Potato Bagging Machine

  • Highlight

    Horizontal bagging machine

    ,

    vertical bagging machines

  • Dimension(LWH/cm)
    L2500 W1800 H2100
  • Application
    Energy, Food Industry
  • Bag Size(mm)
    Customized
  • Voltage
    220V-380V
  • Packaging Speed
    150~240 Bags/hour
  • Power
    2.5KW
  • Standard
    CE
  • Automatic Grade
    Semi-Automatic
  • Place of Origin
    China
  • Brand Name
    RL
  • Certification
    CE
  • Model Number
    DCS-MT-GROSS
  • Minimum Order Quantity
    1 Set/Sets
  • Price
    negotiation
  • Packaging Details
    Standard Export Wooden Case
  • Delivery Time
    20 working days after received your payment
  • Payment Terms
    L/C,T/T
  • Supply Ability
    20 Set/Sets per Month

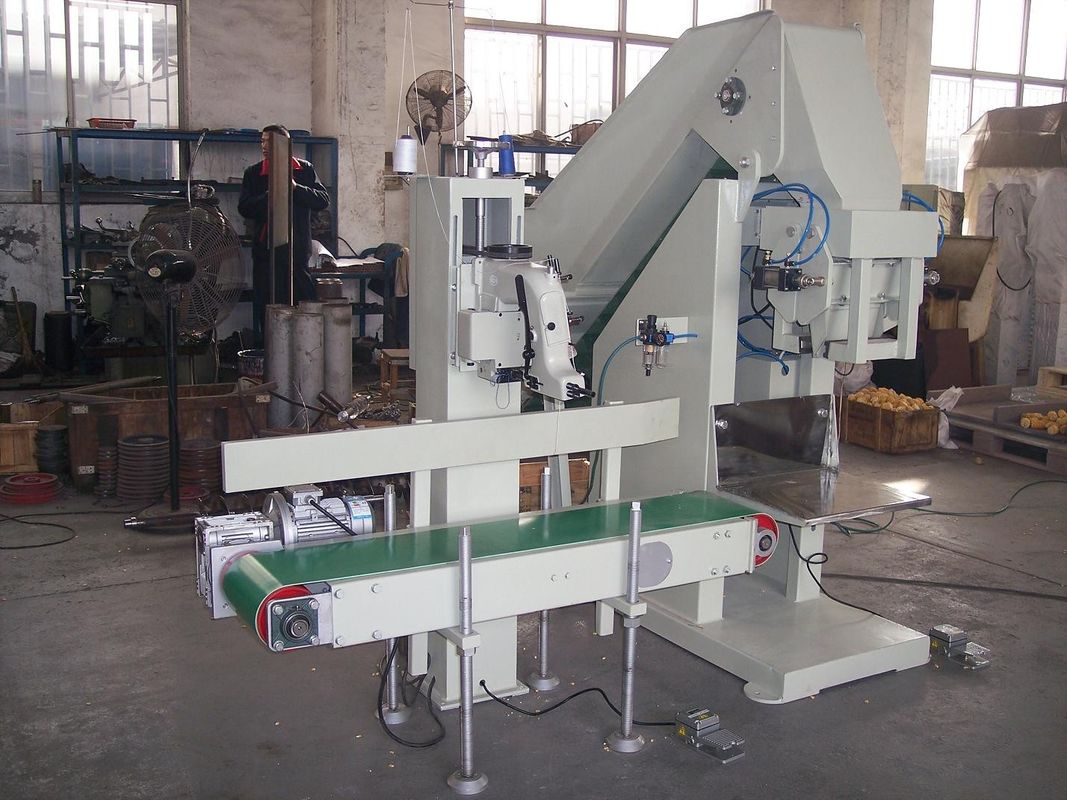

CHINA Semi Automatic Bagging Machine Apple / Orange / Potato Bagging Machine

Automatic Potato Bagging Machine, Potato/Apple/Orange Bagging Machine 3-4bags/minute





Suitable Material:

potato, onion,garlic,apple etc.



Technical parameter
Type DCS-30 SP

Power consumption

 2.5 KW

Air gas consumption

0.4 m/min

Gas pressure

0.4 ~ 0.6 Mpa
Power Supply

AC380V / 220V 50 -60 HZ

Machine size

 2500 * 1800 * 2000(mm)

Package Weight and capacity

2-10kg or 5-30kg, 150-250bags/hour







Our Advantage:



1.  Use leading technology of feeding system ,combine inveter to adjust all necessary motor speed.

2.  Ensure whole machine life after online sales service .

3.  We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.







Main Function:

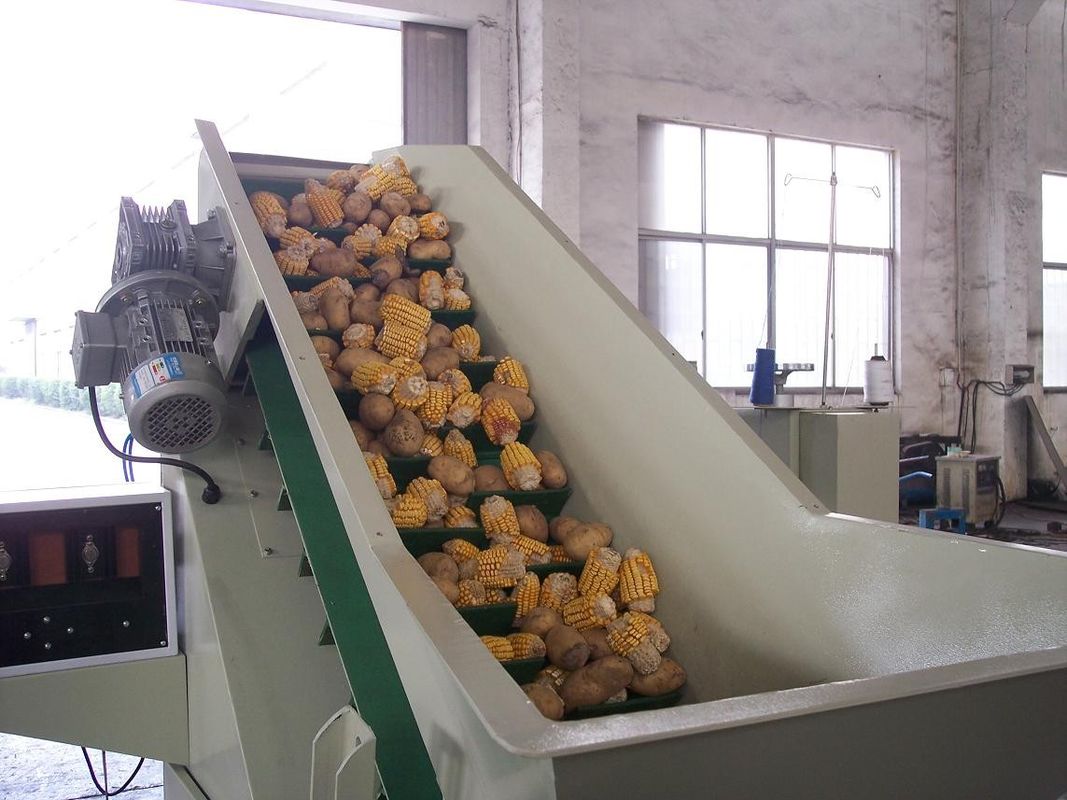

Automatic filling system and dosing weighing balance(inclined multi-stage belt feeder)

Automatic conveyor belt transportation

Automatic sewing or heat sealing machine(based on bag types)

Electric control cabinet and weighing controller



Main operation:

Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge-->Automatic belt conveyor transportation-->Bag sewed or sealed-->Next Round
