Valve Bag 4kW 0.4m3/Hour Weighing And Bagging Machine

Valve Bag 4kW 0.4m3/Hour Weighing And Bagging Machine

  • High Light

    4kW weighing and bagging machine

    ,

    0.4m3/hour valve bag weighing bagging machine

    ,

    0.4m3/hour weighing and bagging machine

  • Machine Size
    2000*1000*1800mm
  • Suitable Material
    Powder, Cement, Granular
  • Power
    4kW
  • Compressed Air
    0.4m3/hour
  • Package
    Plywood Cases
  • Drive Type
    Pneumatic
  • Place of Origin
    CHINA
  • Brand Name
    RUILI
  • Certification
    CE
  • Model Number
    DCS-50FK
  • Minimum Order Quantity
    1 set
  • Price
    negotation
  • Packaging Details
    Standard Export Plywood Cases
  • Delivery Time
    20 days after receive down payment
  • Supply Ability
    20 sets every month

Valve Bag 4kW 0.4m3/Hour Weighing And Bagging Machine

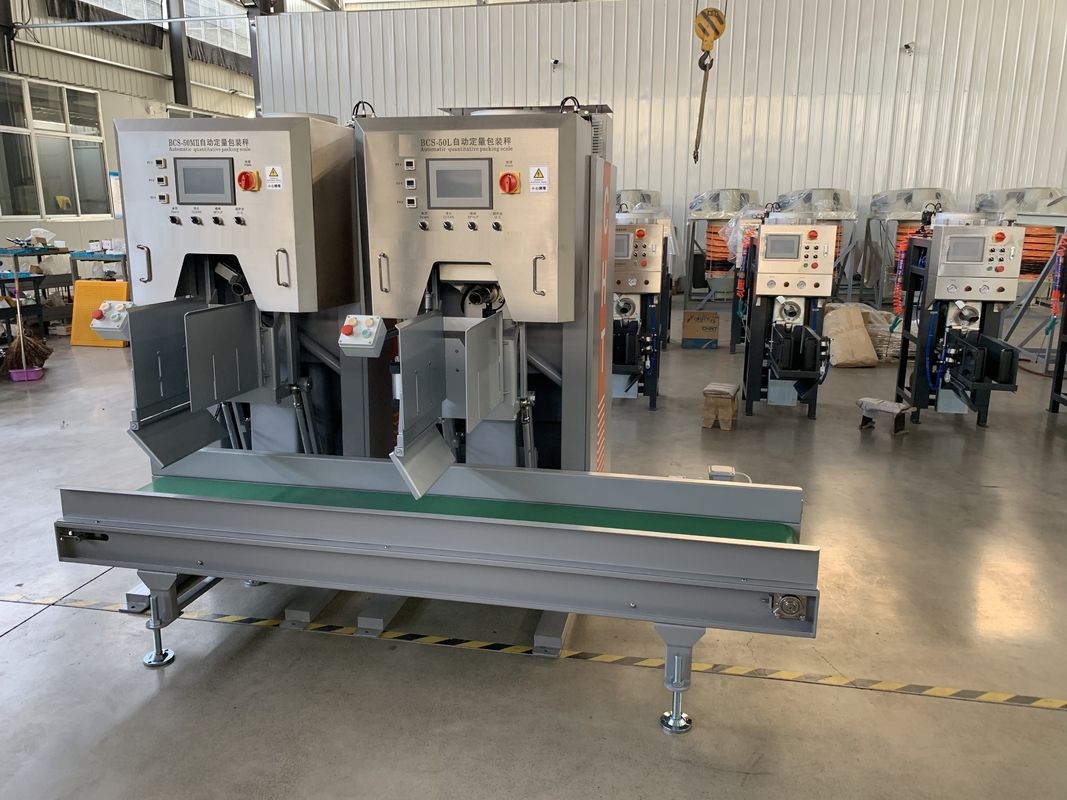

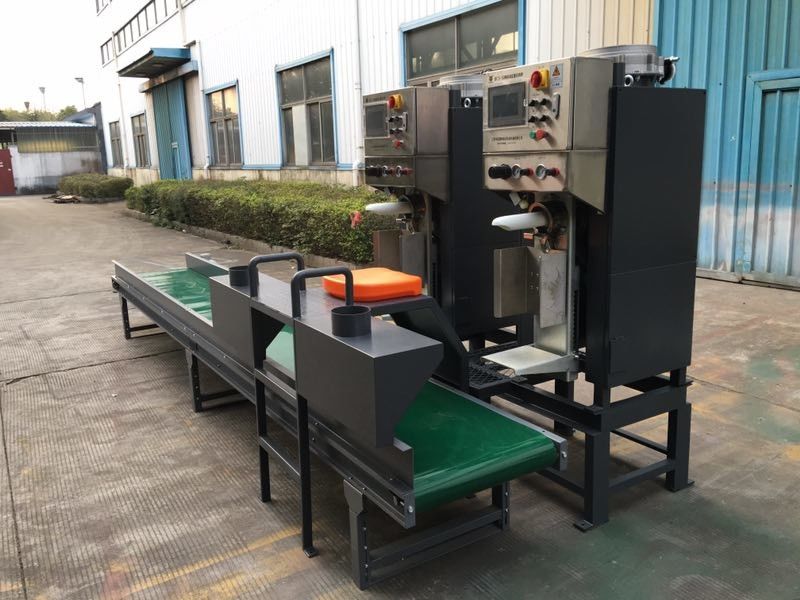

DCS-50FK Dual Spout Valve Bag Filling Machine ;Automatic weighing machine for valve bag  250-320bags/hour





Techmical Parameters:

Type

DCS-50FK

Bagging weight range

10-25kg or 25-50KG  or customized

Packing speed

250-320bags/hour

Bag Material

kraft valve bags

Air consumption

0.6Mpa

Gas consumption

0.4m³/min

Power voltage

220VAC/380 three phase/50HZ

Power

4Kw



Valve Bagger Main structure:

1. Auto Filling System( augar filling or impeller valve)

2. Auto Bag Weighing system

3. Auto Bag Filling

4. Auto seal the small bags

5. Electric control cabinet

6. Weighing Controller (PLC)

7. Auto push the weighed bags to belt conveyor



Suitable Material:

Cement; Clay; Lime Powder; Chemical Powder;Small Granular  etc
