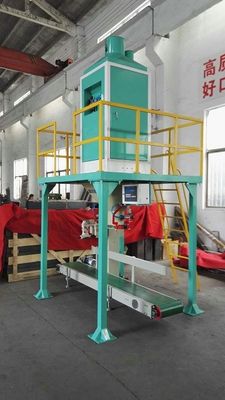

50 - 100kg Bean Packing Pellet Bagging Equipment For Coffee Bean / Soya Bean

50 - 100kg Bean Packing Pellet Bagging Equipment For Coffee Bean / Soya Bean

  • High Light

    pellet bagging equipment

    ,

    grain bagging machines

  • Precision
    +/-0.2%
  • Packing Speed
    300-400bags Per Hour
  • Weighing Scale
    50-100kg Per Bag
  • Power Supply
    220Va.c And 4N-380Va.c Or Customized Voltage
  • Power Dissipation
    1.5kW
  • Compressed Air
    >=0.6MPa
  • Place of Origin
    CHINA
  • Brand Name
    RUILI
  • Certification
    CE
  • Model Number
    DCS-100 A
  • Minimum Order Quantity
    1 SET
  • Price
    USD9110~13970
  • Packaging Details
    PLYWOOD CASE
  • Delivery Time
    20 DAYS AFTER PAYMENT
  • Supply Ability
    20 SETS PER MONTH

50 - 100kg Bean Packing Pellet Bagging Equipment For Coffee Bean / Soya Bean

Platform Stable Operation Packing Machine

400bags/hour or 800bags/hour Fertilizer Packing Machine; Soybean Meal/Feed Bagger; Grain/Wheat Packing Machine

Can use elevator or conveyor to connect the machine ,need install bunker above the machine or change to open mouth hopper



Can make all stainless steel for high corrosive

Can match Robot Palletizer(ABB/KUKUA/NACHI) to improve the whole efficiency





Technical Parameters:

Precision :+/-0.2%
Packing speed : 400bags or 800bags per hour
Weighing scale : 50-100kg per bag
Power Supply : 220Va.c and 4N-380Va.c or customized voltage
Power Dissipation : 1.5kW
Compressed Air : >=0.6MPa
Compressed Air Consume : 1m3 / per hour





Advantage:

1. Single Hopper or Dual hopper Weighing System to be choosed-- with Mettler-Toledo Brand Load Cell

2. Use France Schneider brand electric parts

3. Use Taiwan or Japan or Germany pneumatic parts

4. Provide all life online after sales service

5. Machine designed and manufactured based on 8 years+ life.




Main Structures:

1. Auto filling system--gravity valve feeder(two gates)

2. Auto weighting balance--dual hopper net weighing mode

3. Auto belt conveyor--3500*460*400~650mm

4. Auto sewing machine or Auto heat sealing machine--GK35-7 or DS-9

5. Electric control cabinet and Weighing Controller



Flowing Process:

Manual bag placing-->Auto filling-->Auto weighting-->Auto bag conveyor-->Auto bag sewing-->Next Round
