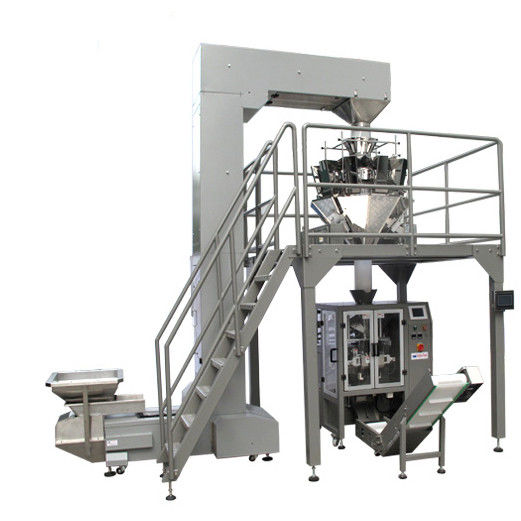

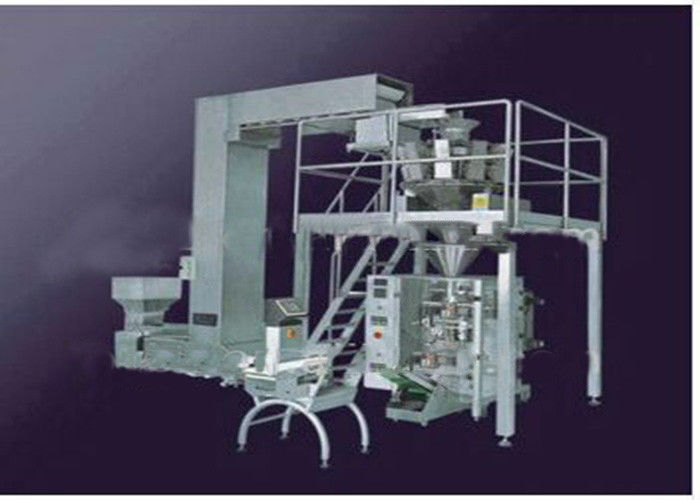

Vertical Small Pouch Bag Pellet Packing Machine 50HZ 220V / 380V

Vertical Small Pouch Bag Pellet Packing Machine 50HZ 220V / 380V

  • High Light

    pellet bagging equipment

    ,

    wood pellet bagger

  • Machine Size
    3000*1350*4000mm
  • Suitable Material
    Small Granulars, Food, Peanut Etc
  • Power
    5kW
  • Compressed Air
    1m3/hour
  • Package
    Plywood Cases
  • Drive Type
    Pneumatic
  • Place of Origin
    CHINA
  • Brand Name
    RUILI
  • Certification
    CE
  • Model Number
    DBIV-6848
  • Minimum Order Quantity
    1 set
  • Price
    negotation
  • Packaging Details
    Standard Export Plywood Cases
  • Delivery Time
    50 days after receive down payment
  • Supply Ability
    20 sets every month

Vertical Small Pouch Bag Pellet Packing Machine 50HZ 220V / 380V

DBIV-6848  Large Vertical Automatic Packing Machine ;Fully automatic small pouch bag bagging machine ; Automatic Vertical Granular Small Bag Packing Machine





Techmical Parameters:

Type

DBIV-6848

Bagging weight range

500G-5000G

Packing speed

5-50bags/min

Bag Material

width:180-320mm; length: 100-480mm;Max width of roll film:680mm

Air consumption

0.65Mpa

Gas consumption

1m³/min

Power voltage

220VAC/380 three phase/50HZ

Power

5Kw



Main Structures:

1. Auto bag placing

2. Auto weighting balance (14 head weighing)

3. Auto bag filled

4. Auto bag sealed

5. Electric control cabinet

6. Auto filling conveyor

7. Auto bag conveyor





Advantage:

1. 14 head Weighing System

2. Use France Schneider brand electric parts

3. Use Taiwan or Japan or Germany pneumatic parts

4. Provide all life online after sales service

5. Machine designed and manufactured based on 8 years+ life.

6. Fully automatic type, no need labor
