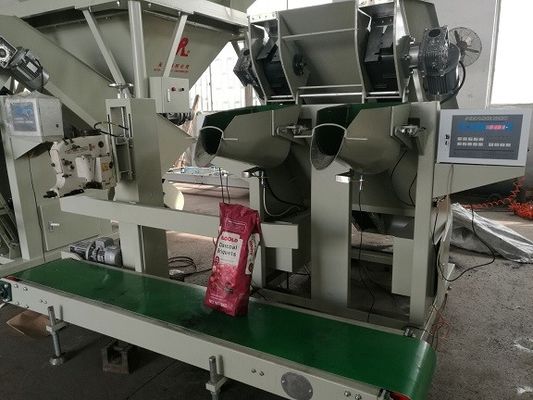

1-5kg Automated Weighing Filling Packing Scale Charcoal / Coal Packing Machine

1-5kg Automated Weighing Filling Packing Scale Charcoal / Coal Packing Machine

  • High Light

    Fruit Packaging Machine

    ,

    bag filling equipment

  • Dimension(LWH/cm)
    L2500 W1850 H1900
  • Application
    Mineral ,Energy, Food Industry
  • Bag Size(mm)
    Customized
  • Voltage
    220V-380V
  • Packaging Speed
    500-600 Bags/hour
  • Power
    4KW
  • Standard
    CE
  • Automatic Grade
    Semi-Automatic
  • Place of Origin
    China
  • Brand Name
    Ruili
  • Certification
    CE
  • Model Number
    DCS-5*2 MT
  • Minimum Order Quantity
    1 Set/Sets
  • Price
    negotiation
  • Packaging Details
    Standard Export Wooden Case
  • Delivery Time
    20 working days after received your payment
  • Payment Terms
    L/C,T/T
  • Supply Ability
    20 Set/Sets per Month

1-5kg Automated Weighing Filling Packing Scale Charcoal / Coal Packing Machine

1-5kg/bag Automatic Coal Packing Scale; Charcoal Packing Machine/ Coal Packaging Machine 500-600bags/hour;



Weighing and Packing Machine Suitable Material:

Press Coal, Lump Charcoal ,BBQ ,gravel, pebble,,



Technical Parameters:

Precision :+/-2-3 material
Packing speed : 500-600bags per hour
Weighing scale : 1-5kg per bag
Power Supply : 220Va.c and 4N-380Va.c
Power Dissipation : 4kW
Compressed Air : No need
Compressed Air Consume : No need



Functions and Features



1. Dual line net weighing machine, pure electric drive.
2. Imported technology weighing controller, Loadcell, pneumatic actuator components.
3. Equipped with high-precision AC power supply to ensure stable and reliable working.
4. Reserved RS232/485 serial port can be used with the external management system for data. communications.
5. Combine leading multi-speed inclined Feeding conveyor together





Our Advantage:



1. Use leading technology of feeding system ,combine inveter to adjust all necessary motor speed.

2. Ensure whole machine life after online sales service .

3. We ourselves file the programme of weighing controller, has Software intellectual property,the software include over 10 alarm codes, when problems happening ,we can help to solve it at the first time.

4. Mechnical design usage period >10 years.  Weighing Controller design usage period >15 years





Main Function:

Automatic filling system and dosing weighing balance

Automatic conveyor belt transportation

Automatic sewing or heat sealing machine(based on bag types)

Electric control cabinet and weighing controller



Main operation:

Auto weighing-->Manual place the bags into clamp bar dump the material-->Automatic belt conveyor transportation-->Bag sewed or sealed-->Next Round
