CE Passed Valve Bag Packer Automatic Bagging Equipment In Construction Field

CE Passed Valve Bag Packer Automatic Bagging Equipment In Construction Field

  • High Light

    Fruit Packaging Machine


    bag packaging equipment

  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 SET
  • Price
  • Packaging Details
  • Delivery Time
  • Supply Ability

CE Passed Valve Bag Packer Automatic Bagging Equipment In Construction Field


Auto Valve Bag Packing Machine; Valve Kraft Bag Bagging Machine; Valve Bagger

Usage in Chemical Field, Construction Field


Contact : +86 13812005190(whatsapp/wechat) for more details!

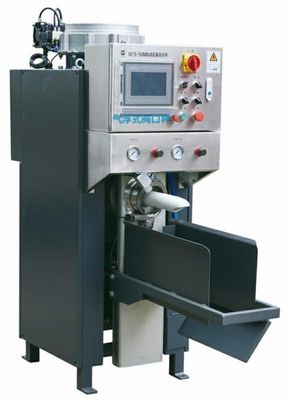

BCS-50M Valve Bag Packing Machine owns several Patents, which cover the feeding system, feeding speed adjusting system, and precision guarantee system. This machine gives you a stable, high speed and high precision use experience.



1.Energy Conservation: Electric power is 60W, save about 98% electric power than normal type. Compressed Air consumption is 0.1 m3 / minute, lower about 50% than normal type.

2.Long working life: Due to use low air press control technology to transfer the material, there is no any friction between the mechanical parts. The working life is about 20~50 times than the normal type.

3.No leakage: Environment friendly design. Due to use the low pressure air pulse material flue control technology, the powder leakage is very small.

4.High precision: Use micro-computer weighing controller to do the whole dosing weighing process. Due the material flow force is very small, this machine is easy to use, easy to operation and easy to adjust.

5.Heavy duty and high stable: Use high-end cylinder, air operated valve and electric parts, which make sure the quality and heavy duty working ability.

6.Good outlook: Good Q235 steel surface process and combined with the SUS304 panel and weighing system, both these give this machine good and high-end outlook.


Technical Parameters

  • Capacity : 4~7 bag per minute
  • Precision : +/- 0.5%
  • Weighing Range : 5kg~60kg / bag
  • Resolution : 10g
  • Packed Material Size : ≤Ø5mm
  • Working Environment : 0℃~40℃; ≤90%R.H.
  • Power Input : AC220V (-15%~+10%) / 50Hz±2%
  • Compressed Air : ≥0.5MPa,0.2m³/min
  • Vent for Dust Collect : ≥2000 m³/h
  • Feeding Pole Port Size : Ø63mm
  • Valve Bag Mouth Size : ≥Ø70mm
  • Feeding Port Size : Ø300mm
  • Whole Size :H=1500mm, W=550mm, L=1000mm

Why Choose Us?

1. Over 20 years manfacturer experience in Domestic China Market.

2. Over 10 years export experience.

3. Use stable and high quality component to ensure the working function.

4. Can customized for all valuable customer
