Lump Wood Charcoal / Coal Bagging Machine Automatic Bagging Equipment

Lump Wood Charcoal / Coal Bagging Machine Automatic Bagging Equipment

  • High Light

    coal packing machine


    coal bagging plant


    automatic charcoal bagger

  • Dimension(LWH/cm)
    L2500 W1800 H2100
  • Application
    Energy, Food Industry
  • Bag Size(mm)
  • Voltage
  • Packaging Speed
    150~240 Bags/hour
  • Power
  • Standard
  • Automatic Grade
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 Set/Sets
  • Price
  • Packaging Details
    Standard Export Wooden Case
  • Delivery Time
    20 working days after received your payment
  • Payment Terms
  • Supply Ability
    20 Set/Sets per Month

Lump Wood Charcoal / Coal Bagging Machine Automatic Bagging Equipment

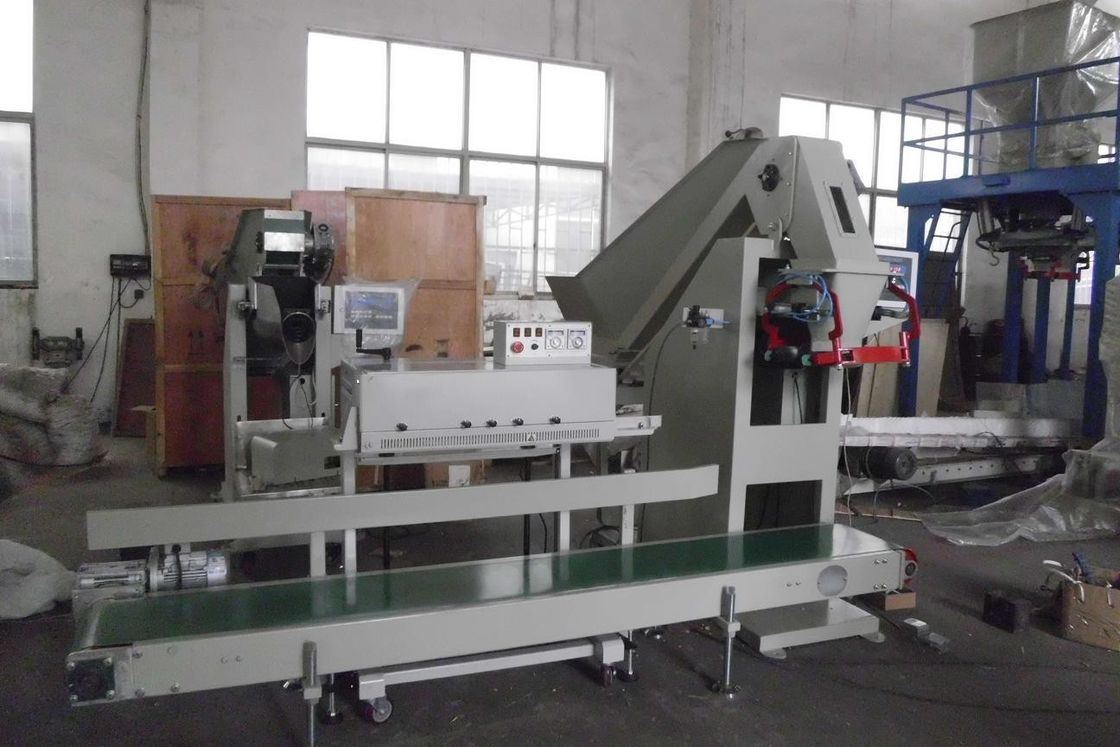

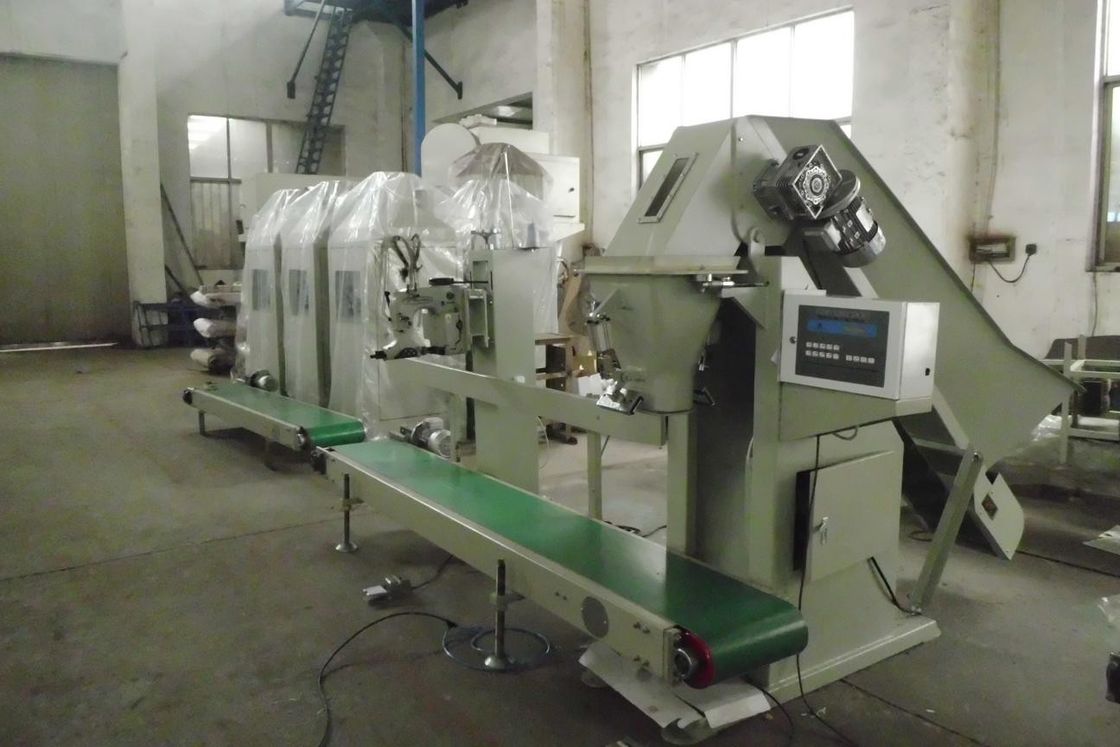

Automatic Charcoal Bagger , Lump Wood Charcoal Bagging Machine 150-240bags/hour


Suitable Material:

Pressed Coal ; Charcoal Ball; Lump wood charcoal ; Briquettes ;big gravel ; Stone etc



Technical Parameters :



: +/-2-3 piece coal(0.5%-5%), depend on coal unit weight

Packing Capacity

: 150-240bags/hour

Weighing scale

2-10kg or 5-30kg or 10-50kg, can be customized by actual request

Power Supply

: 220Va.c and 4N-380Va.c,50Hz

Power Dissipation

: 2.5kW

Request Compressed Air

: N0.4-0.6Mpa, 0.3M3/hour


Functions and Features


1. Automatic release the bag, Reduce labor intensity.
2. Imported technology weighing controller, Loadcell, pneumatic actuator components.
3. Equipped with high-precision AC power supply to ensure stable and reliable working.
4. Reserved RS232/485 serial port can be used with the external management system for data. communications.
5. Combine Feeding conveyor together


Main Function:

1. Automatic filling system and dosing weighing balance(Inclined Multi-Belt Feeder)

2. Automatic conveyor belt transportation

3. Automatic sewing or heat sealing machine(based on bag types)

4. Electric control cabinet and weighing controller


Main operation:

Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge-->Automatic belt conveyor transportation-->Bag sewed or sealed-->Next Round


1. Can you offer oversea service?

Engineers available to service overseas;

2. How to use the machine?

We will supply the installation catalogue or video online;

3. How about the guarantee period?

One year after machine ex factory

4. What's the payment term?

L/C or TT is accepted.

5. What is the lead time?

25 days after received the deposit.



Our Advantage:


1. Use leading technology of feeding system ,combine inveter to adjust all necessary motor speed.

2. Ensure whole machine life after online sales service .

3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.
