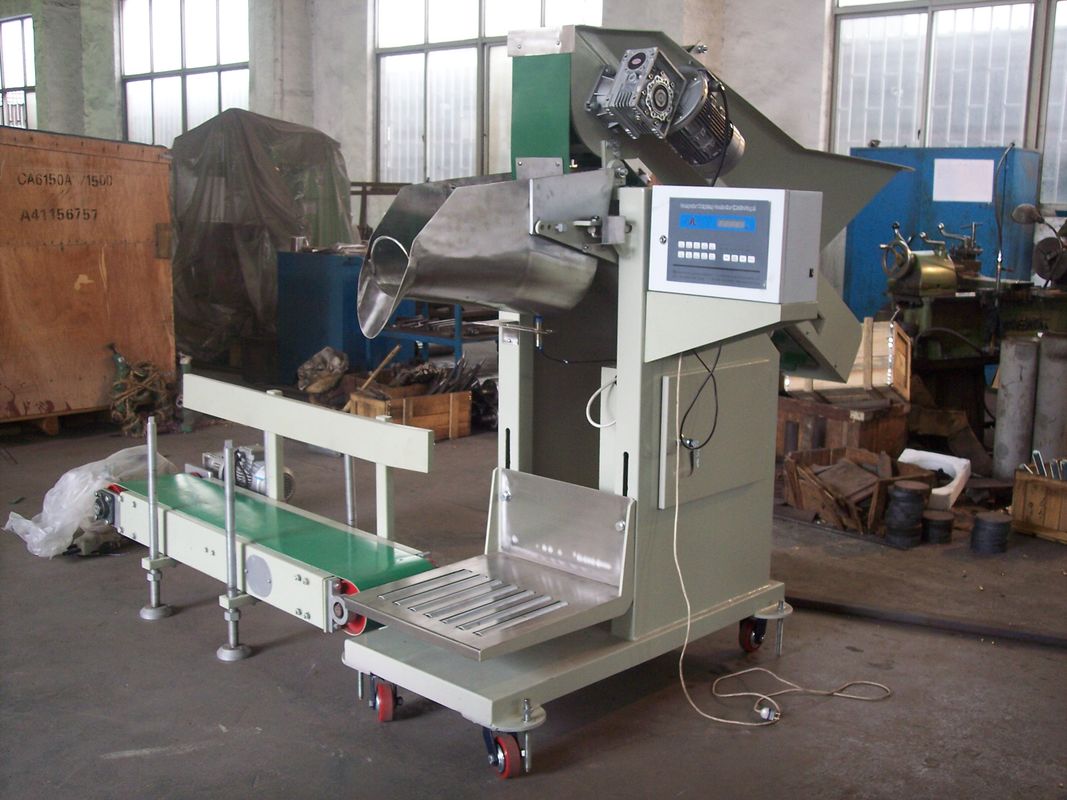

220V Charcoal Briquette Packaging Equipment For Packing Charcoal Coal Ball Pellet

220V Charcoal Briquette Packaging Equipment For Packing Charcoal Coal Ball Pellet

  • High Light

    Coal Ball Charcoal Briquette Packaging Equipment

    ,

    220V Coal Bagging Machine

    ,

    Coal Bagging Machine 2.5KW

  • Dimension(LWH/cm)
    L2500 W1800 H19800
  • Application
    Energy, Food Industry
  • Bag Size(mm)
    Customized
  • Voltage
    220V-380V
  • Packaging Speed
    150~240 Bags/hour
  • Power
    2.5KW
  • Standard
    CE
  • Automatic Grade
    Semi-Automatic
  • Place of Origin
    China
  • Brand Name
    RL
  • Certification
    CE
  • Model Number
    DCS-10-MT
  • Minimum Order Quantity
    1 Set/Sets
  • Price
    negotiation
  • Packaging Details
    Standard Export Wooden Case
  • Delivery Time
    20 working days after received your payment
  • Payment Terms
    L/C,T/T
  • Supply Ability
    20 Set/Sets per Month

220V Charcoal Briquette Packaging Equipment For Packing Charcoal Coal Ball Pellet

Charcoal Briquette Packaging Equipment For Packing Charcoal Coal Ball Pellet



Suitable Material:

Press Coal, Lump Charcoal ,BBQ ,gravel, pebble,,



Techmical Parameters:

Precision :+/-0.5%
Packing speed : 150-250bags per hour
Weighing scale : 2-20kg per bag
Power Supply : 220Va.c and 4N-380Va.c
Power Dissipation : 2.5kW
Compressed Air : 0.4MPa-0.6MPa
Compressed Air Consume : 0.3m3 / per hour



Functions and Features



1. Automatic off the bag, Reduce labor intensity.
2. Imported technology weighing controller, Loadcell, pneumatic actuator components.
3. Equipped with high-precision AC power supply to ensure stable and reliable working.
4. Reserved RS232/485 serial port can be used with the external management system for data. communications.
5. Combine Feeding conveyor together





Our Advantage:



1. Use leading technology of feeding system ,combine inveter to adjust all necessary motor speed.

2. Ensure whole machine life after online sales service .

3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.





Main Function:

Automatic filling system and dosing weighing balance

Automatic conveyor belt transportation

Automatic sewing or heat sealing machine(based on bag types)

Electric control cabinet and weighing controller



Main operation:

Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge-->Automatic belt conveyor transportation-->Bag sewed or sealed-->Next Round
