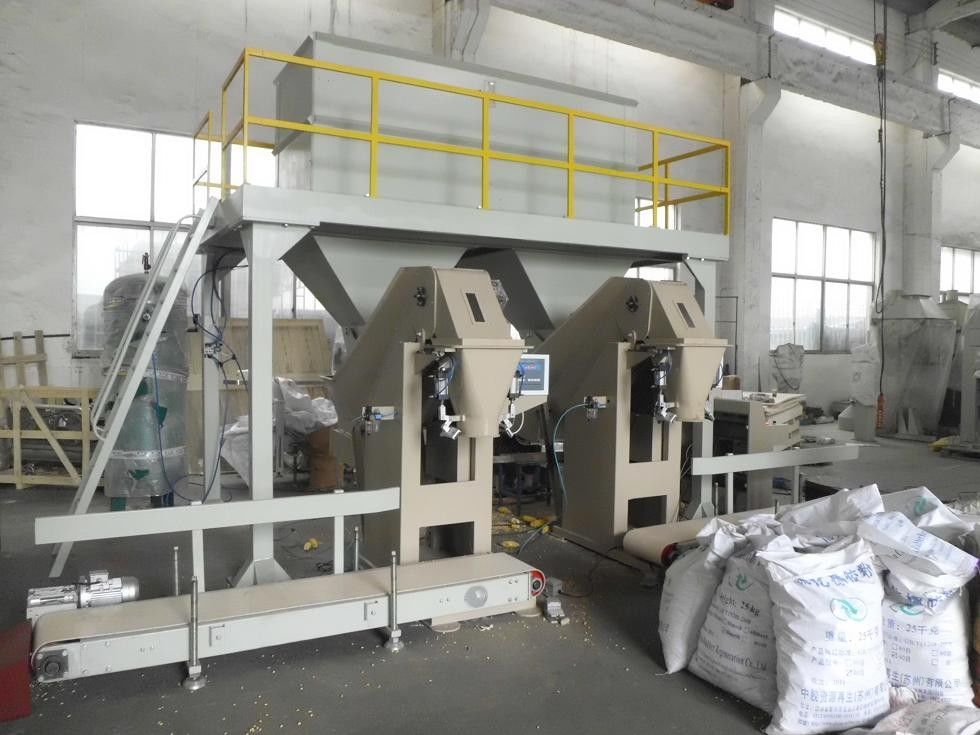

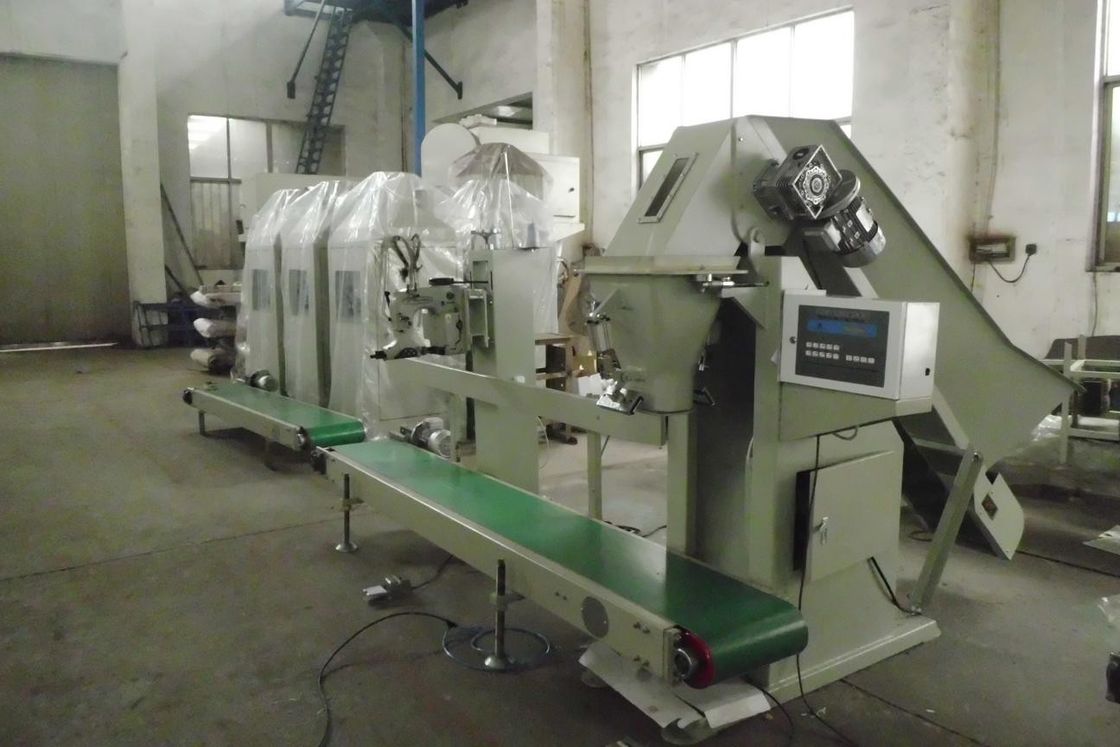

Horizontal Auto Filling Dosing Onion / Potato / Coal Bagging Machine

Horizontal Auto Filling Dosing Onion / Potato / Coal Bagging Machine

    • Horizontal Auto Filling Dosing Onion / Potato / Coal Bagging Machine
    • Horizontal Auto Filling Dosing Onion / Potato / Coal Bagging Machine
    • Horizontal Auto Filling Dosing Onion / Potato / Coal Bagging Machine
    • Horizontal Auto Filling Dosing Onion / Potato / Coal Bagging Machine
  • Horizontal Auto Filling Dosing Onion / Potato / Coal Bagging Machine

    Product Details:

    Place of Origin: China
    Brand Name: RL
    Certification: CE
    Model Number: DCS-MT-GROSS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: negotiation
    Packaging Details: Standard Export Wooden Case
    Delivery Time: 20 working days after received your payment
    Payment Terms: L/C,T/T
    Supply Ability: 20 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Dimension(LWH/cm): L2500 W1800 H2100 Application: Energy, Food Industry
    Bag Size(mm): Customized Voltage: 220V-380V
    Packaging Speed: 150~240 Bags/hour Power: 2.5KW
    Standard: CE Automatic Grade: Semi-Automatic
    High Light:

    coal packing machine

    ,

    coal bagging plant

     3-4bags/minute Automatic Charcoal Bagging Machine Charcoal/ Coal Packing Machine



    Suitable Material:

    Pressed Coal ; Charcoal Ball; Lump wood charcoal ; big gravel etc



    Technical parameter
    Type DCS-50 MT

    Power consumption

     2.5 KW

    Air gas consumption

    0.4 m/min

    Gas pressure

    0.4 ~ 0.6 Mpa
    Power Supply

    AC380V / 220V 50 -60 HZ

    Machine size

     2500 * 1800 * 2000(mm)

    Package Weight and capacity

    2-10kg or 5-30kg, 150-250bags/hour



    Functions and Features



    1. Automatic off the bag, Reduce labor intensity.
    2. Imported technology weighing controller, Loadcell, pneumatic actuator components.
    3. Equipped with high-precision AC power supply to ensure stable and reliable working.
    4. Reserved RS232/485 serial port can be used with the external management system for data. communications.
    5. Combine Feeding conveyor together





    FAQ

    1. Can you offer oversea service?

    Engineers available to service overseas;

    2. How to use the machine?

    We will supply the installation catalogue or video online;

    3. How about the guarantee period?

    One year after machine ex factory

    4. What's the payment term?

    L/C or TT is accepted.

    5. What is the lead time?

    25 days after received the deposit.





    Our Advantage:



    1. Use leading technology of feeding system ,combine inveter to adjust all necessary motor speed.

    2. Ensure whole machine life after online sales service .

    3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.





    Suitable Material:

    Press Coal, Lump Charcoal ,BBQ ,gravel, pebble,,

    potato, onion,garlic,apple etc.



    Main Function:

    1. Automatic filling system and dosing weighing balance(Inclined Multi-Belt Feeder)

    2. Automatic conveyor belt transportation

    3. Automatic sewing or heat sealing machine(based on bag types)

    4. Electric control cabinet and weighing controller



    Main operation:

    Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge-->Automatic belt conveyor transportation-->Bag sewed or sealed-->Next Round



    Packaging & Delivery



    Packaging Details:

    Polywood  Cases 2600mm(L)*1400mm(W)*2150mm(H)



    Delivery Detail:

    25 DAYS after received the deposit
