High Speed Briquette / Coal Bagging Machine With Auto Belt Conveyor

High Speed Briquette / Coal Bagging Machine With Auto Belt Conveyor

  • Highlight

    coal packing machine

    ,

    coal bagging equipment

    ,

    Auto Coal Bagging Machine

  • Size
    3000*2000*3300mm
  • Power
    220V Single Phase; 380V Three Phase
  • Compressed Air
    0.6m3/hour
  • Suitable Package Material
    Pressed Coal, Charcoal, Pebble, Gravel
  • Package
    Plywood Case
  • Place of Origin
    CHINA
  • Brand Name
    RUILI
  • Certification
    CE
  • Model Number
    DCS-50*2 MT
  • Minimum Order Quantity
    1 set
  • Price
    USD14300~15300/SET
  • Packaging Details
    standard plywood cases
  • Delivery Time
    25 Days after receive the down payment
  • Supply Ability
    20 SETS PER MONTH

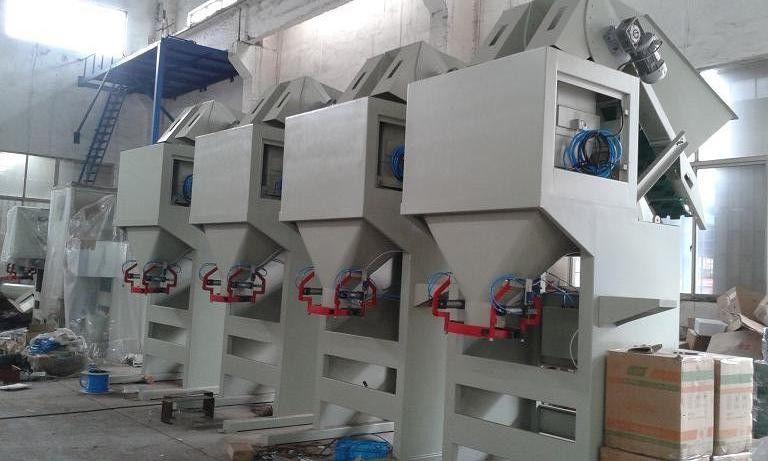

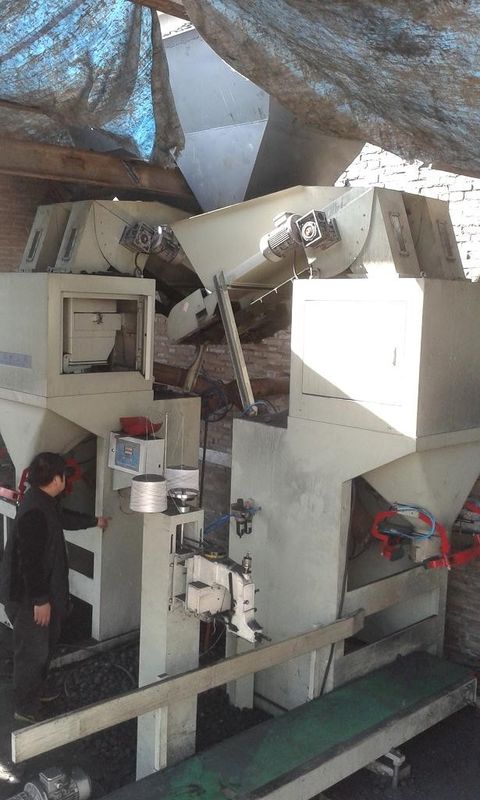

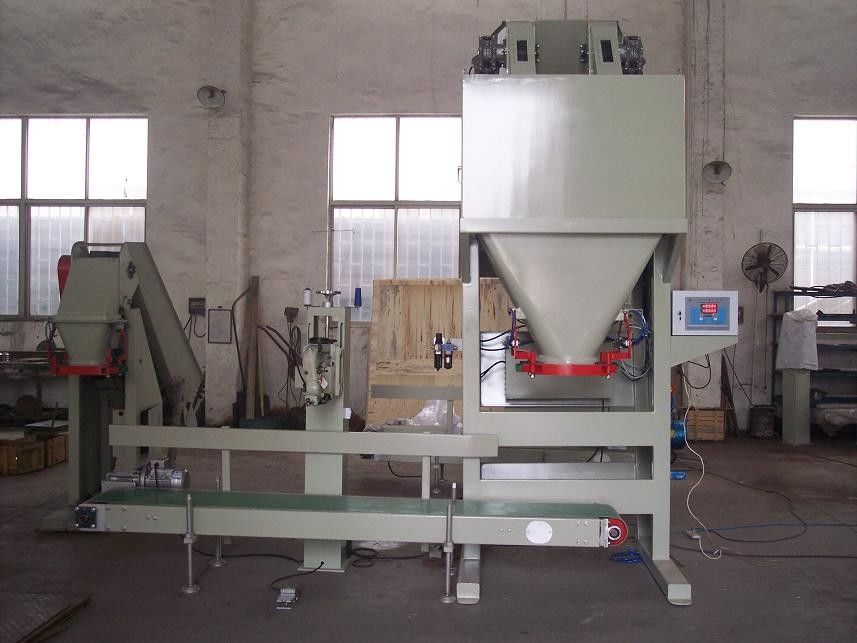

High Speed Briquette / Coal Bagging Machine With Auto Belt Conveyor

High Capacity--Coal Bagging Machine Net weighing machine 10bags per minute



Suitable Materials:

Coal,Nature Charcoal, Briquettes, Pebble,Gravel etc.

Support kraft bags, paper bags, woven bags,pp bags all of open mouth bags





Technical Parameters:



Precision :+/- 2-3 material weight
Packing speed : 500-650bags per hour
Weighing scale :10-50kg per bag
Power Supply : 220-240Va.c and 4N-380-415Va.c,50Hz/60Hz
Power Dissipation : 4.5kW
Compressed Air : 0.4MPa~0.6MPa
Compressed Air Consume : 0.6m3 per hour
Feed-in system : Belt conveyer feed-in, smoothly and quickly




Our Advantage:

1. Use Mettler-Toledo Brand Load Cell

2. Use France Schneider Brand electric parts

3. Use Taiwai or Japanese or Germany brand pneumatic parts

4. Ensure whole machine life online after sales service

5. Basic steel structure ensure 8 years+ usage life


Main Structures:

1. Auto dosing fill system (multi-speed horizontal belt conveyor feeding system)

2. Auto weighting balance

3. Auto belt conveyor

4. Sewing machine or Heat sealing machine

5. Electric control cabinet



Flowing Process:

Manual bag placing-->Auto filling-->Auto weighting-->Auto bag conveyor-->Auto bag sewed or sealed-->next round
