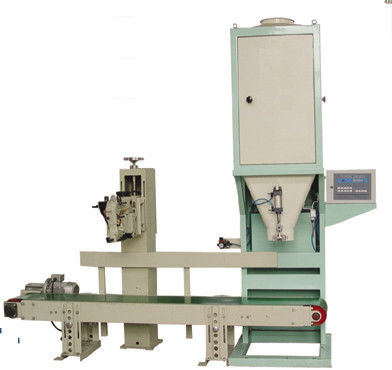

Charcoal Briquette Packaging Equipment For Packing Coal Ball Pellet Bagging Machine

Charcoal Briquette Packaging Equipment For Packing Coal Ball Pellet Bagging Machine

  • High Light

    Charcoal Briquette Packaging Equipment


    Coal Ball Pellet Bagging Machine


    Pressed Coal Bagging Machine

  • Size
  • Power
    220V Single Phase; 380V Three Phase
  • Compressed Air
  • Suitable Package Material
    Pressed Coal, Charcoal, Pebble, Gravel
  • Package
    Plywood Case
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    standard plywood cases
  • Delivery Time
    25 Days after receive the down payment
  • Supply Ability

Charcoal Briquette Packaging Equipment For Packing Coal Ball Pellet Bagging Machine

Charcoal Briquette Packaging Equipment For Packing Charcoal Coal Ball Pellet Bagging Machine


This kind of charcoal briquette packaging equipment for packing charcoal is special for design for coal, briquette, charcoal. It has some preventive mechanism: anti-jam, anti-shock, anti-stopper, which offers user easy-operation, easy-assembling, easy-maintenance and excellent stability. And total-solution in a compact structure, need very small space ro fix. Choose dual-hopper, which enhance the scale packing speed from normal 300 bag/hour to 600 bags/hour, and not increase any operators.




Suitable Materials:

Coal,Nature Charcoal, Briquettes, Pebble,Gravel etc.

Support kraft bags, paper bags, woven bags,pp bags all of open mouth bags


1) use Spray Coating;

2) independent suspension sensor can transfer signal stable, so that guarantee the weighting precise;

3) the main engine adopts converter technique;

4) the main engine, conveyor belt, Bag-sewing machine and controller connect together, in order to guarantee user-friendly operation and lower labor intensity;

5) solved the problem that after opening the air chuck, the bag drops and materials spill over;

6) use infrared rays to transfer, save more energy;

7) save the shift output,daily output and cumulative output automatically.


Technical Parameters:


Precision :+/- 2-3 material weight
Packing speed : 150~250bags or 300~400bags or 500~650bags per hour
Weighing scale :2-10kg or 10-50kg per bag
Power Supply : 220-240Va.c and 4N-380-415Va.c,50Hz/60Hz
Power Dissipation : 2.5kW~4.5kW
Compressed Air : >0.6MPa
Compressed Air Consume : 0.2~0.6m3 per hour
Feed-in system : Belt conveyer feed-in, smoothly and quickly




Our Advantage:

1.  Use Mettler-Toledo Brand Load Cell

2.  Use France Schneider Brand electric parts

3.  Use Taiwai or Japanese or Germany brand pneumatic parts

4.  Ensure whole machine life online after sales service

5.  Basic steel structure ensure 8 years+ usage life

Main Structures:

1. Auto dosing fill system (multi-speed horizontal belt conveyor feeding system)

2. Auto weighting balance

3. Auto belt conveyor

4. Sewing machine or Heat sealing machine

5. Electric control cabinet


Flowing Process:

Manual bag placing-->Auto filling-->Auto weighting-->Auto bag conveyor-->Auto bag sewed or sealed-->next round
