400bags/Hour Powder 5.5kW Auto Bagging Weighing Machine

400bags/Hour Powder 5.5kW Auto Bagging Weighing Machine

  • High Light

    400bags/hour auto bagging weighing machine

    ,

    5.5kW auto bagging weighing machine

    ,

    400bags/Hour Powder Bagging Weighing Machine

  • Name
    Augar Powder Filling Weighing Machine
  • Machine Size
    5000*2500*2800mm
  • Suitable Material
    Flour ;Soybean Powder; Plastic Powder; Chemical Powder
  • Power
    5.5kW
  • Compressed Air
    0.4m3/hour
  • Package
    Plywood Cases
  • Drive Type
    Pneumatic
  • Place of Origin
    CHINA
  • Brand Name
    RUILI
  • Certification
    CE
  • Model Number
    DCS-25F
  • Minimum Order Quantity
    1 set
  • Price
    by negotiate
  • Packaging Details
    Standard Export Plywood Cases
  • Delivery Time
    25 days after receive down payment
  • Supply Ability
    10 sets every month

400bags/Hour Powder 5.5kW Auto Bagging Weighing Machine

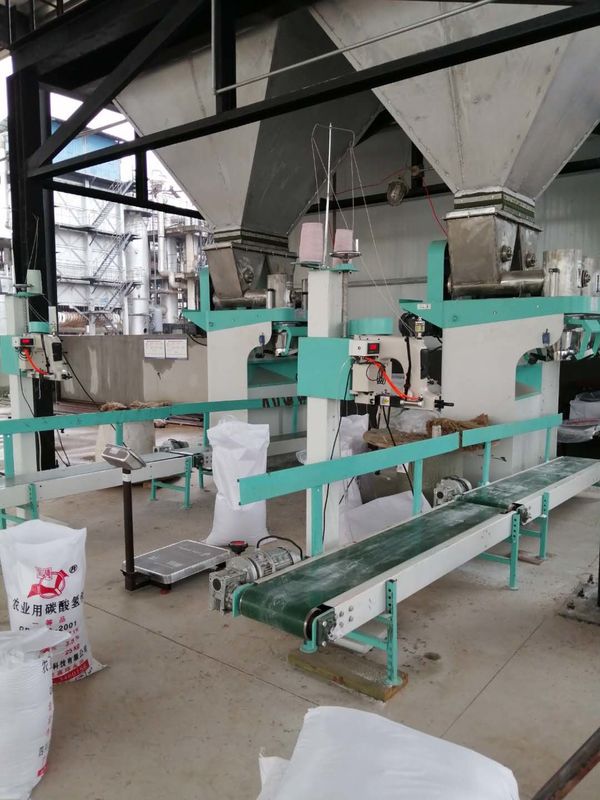

Dual Spout Gross Weighing Open Mouth Powder Bagging Machine  10-25kg/bag with 250-400bags/hour capacity

Powder Weigher Bagging Machine





Weigher Filling Machine Technical Parameters:

Precision :+/-0.2%
Packing speed :250-400bags per hour
Weighing scale : 10-25kg or 25-50kg per bag
Power Supply : 220Va.c and 4N-380Va.c
Power Dissipation : 5.5kW
Compressed Air : >=0.6MPa
Compressed Air Consume : 1m3 / per hour





Automatic Weighing and  Packing Machine Main Structures:

1.  Hopper with level sensor + vibration pneumatic system

2.  Auto filling system-- Multi-stage Single screw feeder or dual screw feeder  2 sets

3.  Auto weighing balance--gross weighing mode 2 sets

4.  Auto belt conveyor 2 sets

5.  Auto sewing machine or Auto heat sealing machine 1 set

6.  Auto weight re-check machine

7.  Auto bag lie down machine

8.  + Bag robot palletizing system



Auto Bagging Machine Flowing Process:

Manual bag placing-->Auto filling-->Auto weighing-->Auto bag suck air-->Auto bag conveyor-->Auto bag sewing-->Next round



Automatated Filling Weighing Machien Advantage:

1. >25 years experiences in weighing scale field for many industrials

2.  Provide machine all life online after sales service

3.  Machine designed and manufactured >15 years

4. Weighing controller design usage period >10 years , self-developed controller has over 10 alarm code, we can online support customer to solve the problems in shortest time
