Calcium Carbide PP Woven Bags 4.5KW Auto Bagging Machines

Calcium Carbide PP Woven Bags 4.5KW Auto Bagging Machines

  • High Light

    4.5KW auto bagging machines

    ,

    450bags/hour auto bagging machines

    ,

    Auto Calcium Carbide Bagging Machines

  • Name
    Automatic Weighting And Filling Machine
  • Dimension(LWH/cm)
    L4000 W1800 H3200
  • Application
    Energy, Construction Industry
  • Bag Size(mm)
    Customized
  • Voltage
    220V-380V
  • Packaging Speed
    350~450bags/hour
  • Power
    4.5KW
  • Standard
    CE
  • Automatic Grade
    Semi-Automatic
  • Place of Origin
    China
  • Brand Name
    RL
  • Certification
    CE
  • Model Number
    DCS-50*2 MT-B
  • Minimum Order Quantity
    1 Set/Sets
  • Price
    negotiation
  • Packaging Details
    Standard Export Wooden Case
  • Delivery Time
    20 working days after received your payment
  • Payment Terms
    L/C,T/T
  • Supply Ability
    20 Set/Sets per Month

Calcium Carbide PP Woven Bags 4.5KW Auto Bagging Machines

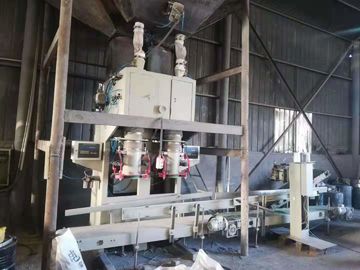

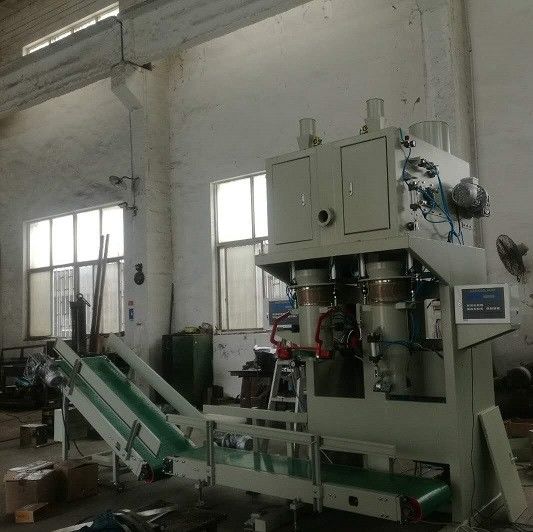

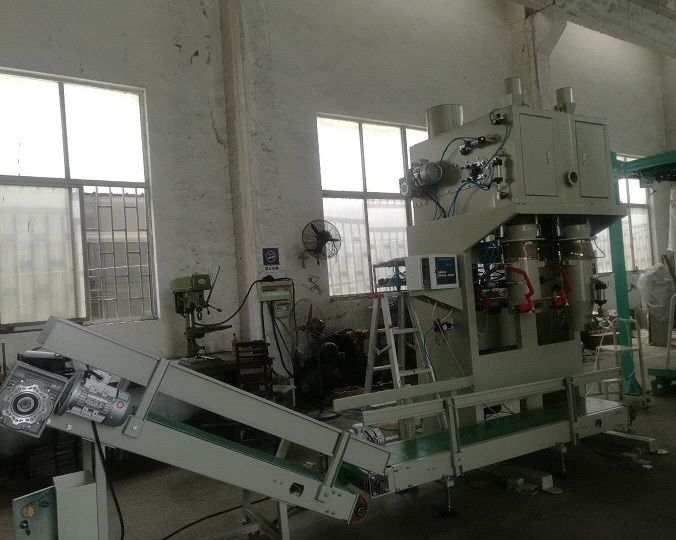

New Type!  Dual spout Automatic Calcium Carbide PP Woven Bags Packing Machine

Special Design --Two feeding system for each spout, block Calcium Carbide +Powder Calcuim Carbide, to reach to the ideal accuracy .

Block size support 15-80mm, Power can additional add 100g-500g, setting the tarage weight in  the weighing controller freely.



Suitable Material:

Calcium Carbide; Coal;Charcoal; Gravel etc



Technical parameter
Type DCS-50 *2MT-B

Power consumption

 4.5 KW

Air  consumption

0.6 m3/hour

Request Air pressure

 >=0.6 Mpa
Power Supply

AC380V / 220V 50 -60 HZ

Package Weight  10-50kg
Package capacity

350-450bags/hour



Calcium Carbide Packing Machine  include :

1. Dual spout Weighing Scale  1 set;

2. Weighing Controller  2 sets;

3. Adjustable Belt Conveyors 2 sets;

4. Automatic Sewing Machine  1 set

5. Inclined Belt Conveyor  1 set-- if needed





Industrial Bagging Machine Advantage:



1. Special Design of feeding system ,combine inveter to adjust all necessary motor speed.

2. Ensure whole machine life after online sales service .

3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.





Sack Packing Machine Main Function:

1. Automatic filling system and dosing weighing balance(Inclined Multi-Belt Feeder)

2. Automatic conveyor belt transportation

3. Automatic sewing or heat sealing machine(based on bag types)

4. Electric control cabinet and weighing controller



Automatic Bagging Equipment Main operation:

Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge-->Automatic belt conveyor transportation-->Auto Bag sewed -->Next Round





We also have project design for bucket filling(Barrel), Welcome to contact us if you are interested in.
