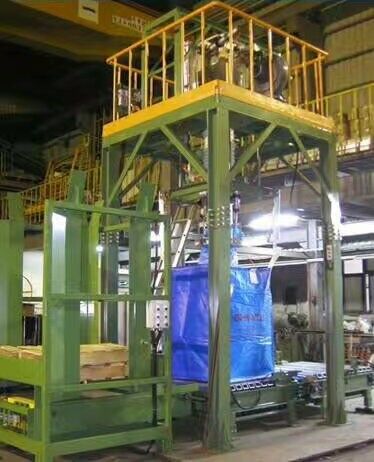

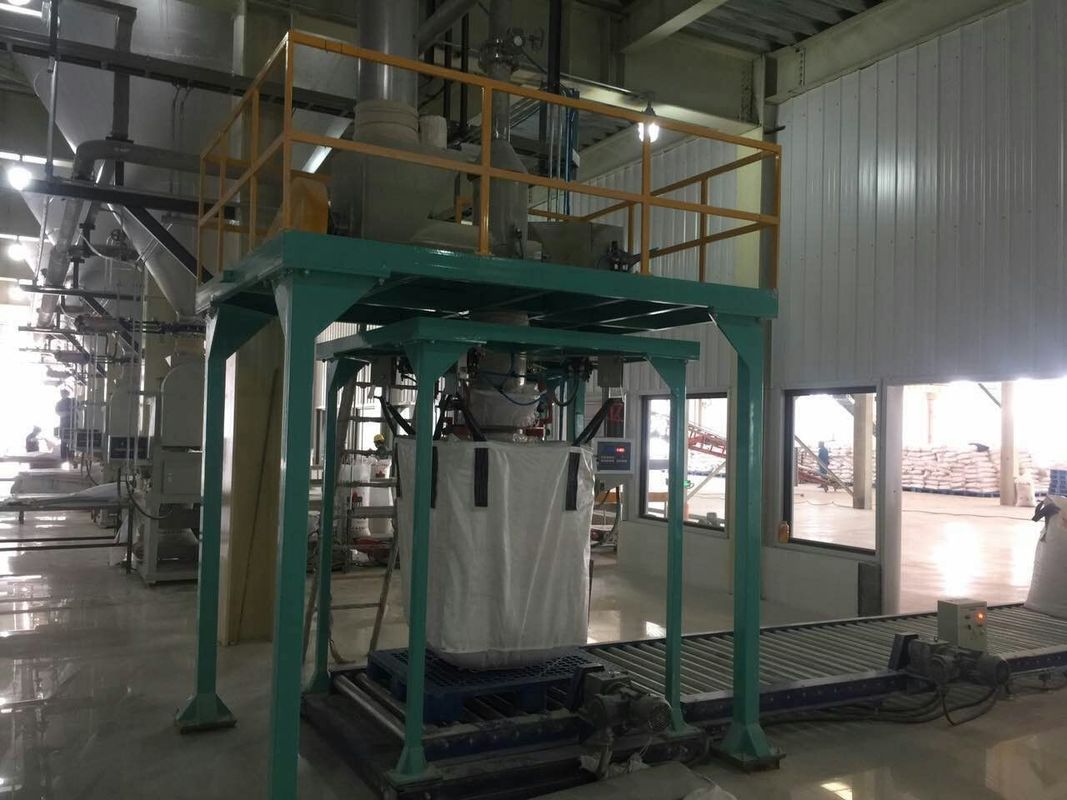

Automatic Jumbo Auto Bagging Machines With CE Approval 380v / 220v

Automatic Jumbo Auto Bagging Machines With CE Approval 380v / 220v

  • High Light

    automatic bagging equipment

    ,

    automatic bagging machines

    ,

    CE Approval Jumbo Bag Packing Machine

  • Dimension(LWH/cm)
    L2500 W 2500 H 5000
  • Application
    All Kinds Of Material, Feed, Fertilizer,PVC Granular,Powder Etc
  • Bag Size(mm)
    Customized
  • Voltage
    220V-380V
  • Packaging Speed
    10-15bags/hour
  • Power
    0.5kW~4kW
  • Standard
    CE
  • Automatic Grade
    Automatic
  • Place of Origin
    China
  • Brand Name
    RUILI
  • Certification
    CE
  • Model Number
    DCS-1000F
  • Minimum Order Quantity
    1 Set/Sets
  • Price
    USD21640~USD23582
  • Packaging Details
    Standard Export Wooden Case
  • Delivery Time
    20 working days after received your payment
  • Payment Terms
    L/C,T/T
  • Supply Ability
    20 Set/Sets per Month

Automatic Jumbo Auto Bagging Machines With CE Approval 380v / 220v

China DCS-1000F Automatic Big Bag Bagging Machine, Jumbo Bag Filling Machine; Auto Big Bag Bagging Machine



CE Approval DCS-1000F China Big Bag Filling Machine;Jumbo Bag Packing Machine



Suitable Material:

All kinds of Granular or Powder  Material





Technical parameters:

Product name  jumbo bag filling machine
Weighing accuracy +/-0.2%
Qualified rate of bag weight (%) 95% for jumbo bag filling machine
Output (T/H)  ≥ 10-20

Power(KW)

0.5kW~5.5kW
Weight range(KG ) 500-2000kg and can be adjusted

Production capacity(bags/hr)

10-15bags/hour

Supply voltage

380v/220v,50HZ(can customized)
Air supply pressure >=0.6Mpa
air consumption CFM 1m3/min
temperature  -20~40°C
Working Humidity  <95% (without condensated water)





Our Advantage

1. Use accuracy of feeding system

2. Ensure whole machine life after online sales service .

3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.

4. Has function to inflation and vibration big bags



Operation process:

Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge->Automatic roller conveyor transportation-->Next Round



Main Structure:

1. Automatic filling system

2. Automatic weighing balance(Mettler-Toledo Load cell)

3. Automatic Ton-bag clipper

4. Automatic rolling conveyor(if needed)

5. Electric control cabinet



Optional:

1. Dust Collector

2. Vacuum heat sealing machine

3. Chain conveyor





Functions and Features



1.  Automatic clamp and release the bags.
2.  Imported technology weighing controller, Loadcell, pneumatic actuator components.
3.  Equipped with high-precision AC power supply to ensure stable and reliable working.
4.  Reserved RS232/485 serial port can be used with the external management system for data. communications.
