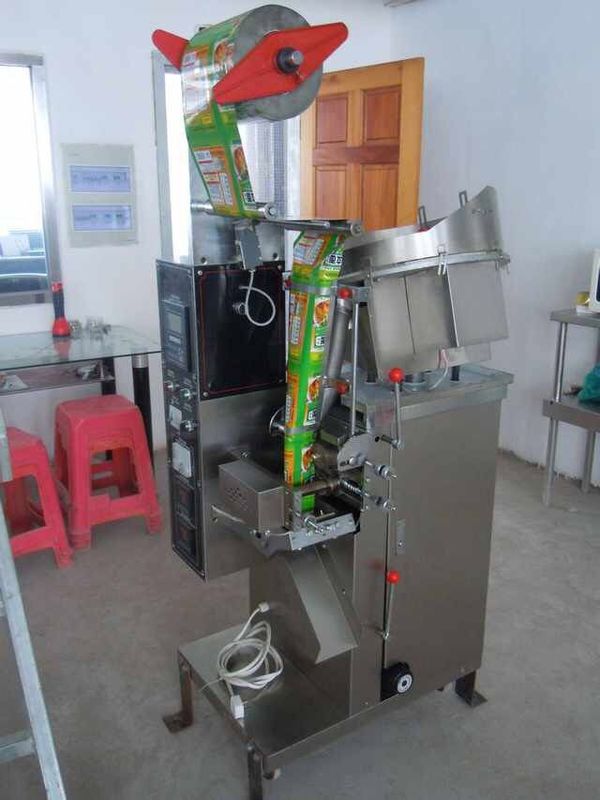

Model: Automatic tablet packaging machine (DXDP - 100)
Use: this series of bags for three edge sealing pillow shape or form, applicable mainly packing medicine, chemical industry, industrial products in the wafer and the circle of granular materials. Such as sugar pill, tablet, steel ball, capsule or other materials packaging.
Users can also choose stainless steel enclosure or ordinary steel enclosure. Another configurable steel words printed or date code printer to print, and other functions
Points:
1, adopt touch screen control system, the number of grains disc count, cutting vibration, which avoids the phenomenon of air leakage, easy to operate, running
Stable and reliable, high precision of bag.
2, automatic tracking color scale, automatic packaging, cursor, measuring, counting, cutting the whole process of application, and can be produced
The packing of the product speed, quantity, monitoring, and other functions.
Packing materials: pt/PE, BOPP/PE, aluminum foil/PE, tea filter paper, etc. Can be heat sealing composite material.
Technical parameters:
Performance model
DXDP - 100
The bag size (width * length) long (L) : 55-110 - mm (mm)
Width (W) : 30-80 - mm (mm)
Packing speed maximum 20-60 bags/min (bag/min)
Measuring scope biggest 200 pieces
Total power 1.8 KW
The weight of 300 kg (kg)
Overall dimensions (length * width * height) 790 * 600 * 1740 cubic millimeter squared (mm)
The sealing form three edge-sealing back edge sealing or four edge sealing
Our products are sold all over the world, you can rest assured.
