Bulk Bag Auto Bagging Machines , Automated Bagging Systems For Fly Ash Powder

Bulk Bag Auto Bagging Machines , Automated Bagging Systems For Fly Ash Powder

  • High Light

    automated bagging systems

    ,

    automatic bagging machines

    ,

    fly ash powder bagging system

  • Dimension(LWH/cm)
    L2500 W 2600 H 3700
  • Application
    Coal Powder,Fly Ash Powder
  • Bag Size(mm)
    Customized
  • Voltage
    220V-380V
  • Packaging Speed
    15-30 Bags/hour
  • Power
    0.2KW~5.5kW
  • Standard
    CE
  • Automatic Grade
    Automatic
  • Place of Origin
    China
  • Brand Name
    RUILI
  • Certification
    CE
  • Model Number
    DCS-1000-F
  • Minimum Order Quantity
    1 Set/Sets
  • Packaging Details
    Standard Export Wooden Case
  • Delivery Time
    20 working days after received your payment
  • Payment Terms
    L/C,T/T
  • Supply Ability
    20 Set/Sets per Month

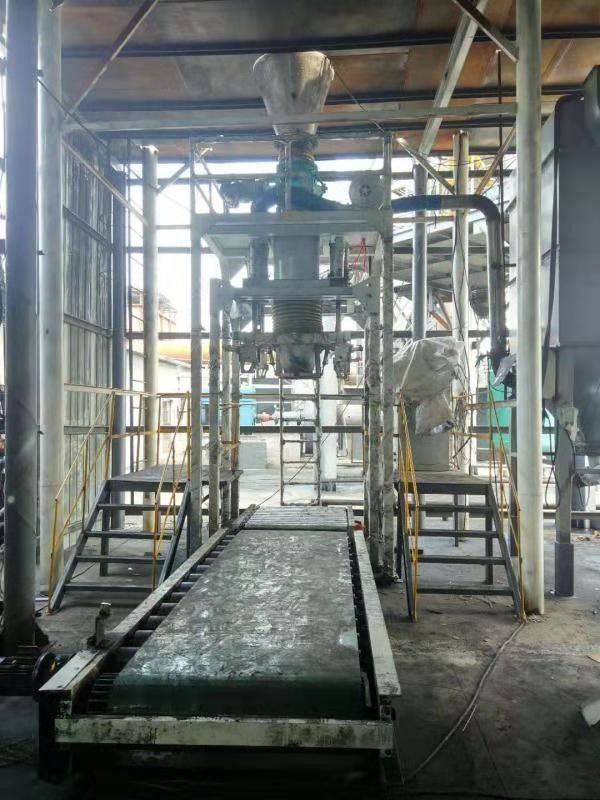

Bulk Bag Auto Bagging Machines , Automated Bagging Systems For Fly Ash Powder





China DCS-1000F Automatic Big Bag Bagging Machine ,  Automatic Powder Big Bag Filling Machine;

Automatic Powder Bulk Bag Weighing Scale







Suitable Material:

Chemical Powder; Coal Powder, Fly Ash Powder etc.



Technical parameters:

Product name  jumbo bag filling machine
Weighing accuracy +/-0.2%
Qualified rate of bag weight (%) 95% for jumbo bag filling machine
Output (T/H)  ≥ 15-25

Power(KW)

5.5kW
Weight range(KG ) 500-2000kg and can be adjusted

Production capacity(bags/hr)

15-30bags/hour

Supply voltage

380v/220v,50HZ(can customized)
Air supply pressure >=0.6Mpa
air consumption CFM 1m3/min
temperature  -20~40°C
Working Humidity  <95% (without condensated water)





Our Advantage

1. Use accuracy of feeding system ( Rotate valve feeder+ pneumatic valve gate)

2. Ensure whole machine life after online sales service .

3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.



Operation process:

Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge->Automatic roller conveyor transportation-->Next Round



Main Structure:

1. Automatic filling system

2. Automatic weighing balance(Mettler-Toledo Load cell)

3. Automatic Ton-bag clipper

4. Automatic rolling conveyor(if needed)

5. Electric control cabinet and weighing controller



Optional:

1. Dust Collector

2. Chain conveyor





Functions and Features



1.  Automatic clamp and release the bags.
2.  Imported technology weighing controller, Loadcell, pneumatic actuator components.
3.  Equipped with high-precision AC power supply to ensure stable and reliable working.
4.  Reserved RS232/485 serial port can be used with the external management system for data. communications.
