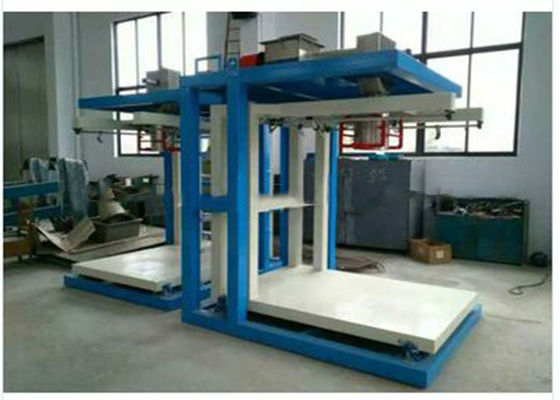

Automatic Big Bag Packaging Machine / Jumbo Bag Filling Machine CE Standard

Automatic Big Bag Packaging Machine / Jumbo Bag Filling Machine CE Standard

  • High Light

    automated bagging systems

    ,

    automatic bagging machines

    ,

    ce standard big bag packaging machine

  • Dimension(LWH/cm)
    L2500 W2500 H3500
  • Application
    Grain, Feed, Fertilizer, Chemical Etc
  • Bag Size(mm)
    Customized
  • Voltage
    220V-380V
  • Packaging Speed
    10-40 Bags/hour
  • Power
    2.5KW
  • Standard
    CE
  • Automatic Grade
    Automatic
  • Place of Origin
    China
  • Brand Name
    RL
  • Certification
    CE
  • Model Number
    DCS-1000A
  • Minimum Order Quantity
    1 Set/Sets
  • Price
    negotiation
  • Packaging Details
    Standard Export Wooden Case
  • Delivery Time
    20 working days after received your payment
  • Payment Terms
    L/C,T/T
  • Supply Ability
    20 Set/Sets per Month

Automatic Big Bag Packaging Machine / Jumbo Bag Filling Machine CE Standard



Automatic Big Bag Packaging Machine / Jumbo Bag Filling Machine CE Standard

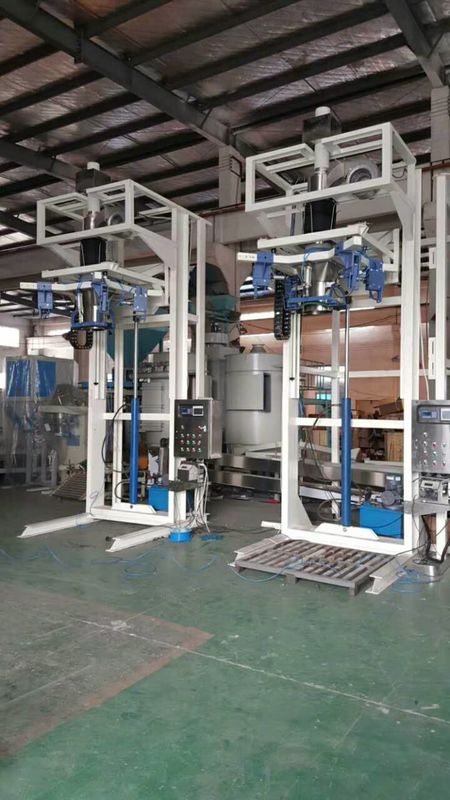

DCS-1000A  Automatic Big Bag Bagging Machine ,  Big Bag Packing Machine / Ton Bag  Weighing machine ;Jumbo Bag Filling Machine

Weighing dosing mode: three types

  • Net Weighing--with a big weighing hopper
  • Weighing in the hanging system
  • Weighing in the floor scale

Contact: +86 13812005190 (whatsapp/wechat) for more details



Suitable Material:

All kinds of solid material , we use gravity valve to handle granular, screw feeder to handle powder, belt feeder to handle irregular material.



Technical parameters:

Product name  jumbo bag filling machine
Weighing error (KG) 50± 0.5
Qualified rate of bag weight (%) 95% for jumbo bag filling machine
Output (T/H)  ≥10-40

Power(KW)

2.5~6kW for jumbo bag filling machine
Weight range(KG ) 500-2000kg and can be adjusted

Production capacity(bags/hr)

5-30bags/hour

Supply voltage

380v/220v,50HZ(can customized)
Air supply pressure 0.5~0.6Mpa for jumbo bag filling machine
air consumption CFM 0.8-1m3/min
temperature   -20~40°C
Working Humidity  <95% (without condensated water)






Our Advantage

1. Use accuracy of feeding system

2. Ensure whole machine life after online sales service .

3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.

4. Customized design for different installation demand



Operation process:

Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge->Automatic roller conveyor transportation-->Next Round



Main Structure:

1. Automatic filling system

2. Automatic weighing dosing balance

3. Ton-bag clipper

4. Automatic rolling conveyor(if needed)

5. Electric control cabinet





Functions and Features



1.  Automatic clamp and release the bags.
2.  Imported technology weighing controller, Loadcell, pneumatic actuator components.
3.  Equipped with high-precision AC power supply to ensure stable and reliable working.
4.  Reserved RS232/485 serial port can be used with the external management system for data. communications.
