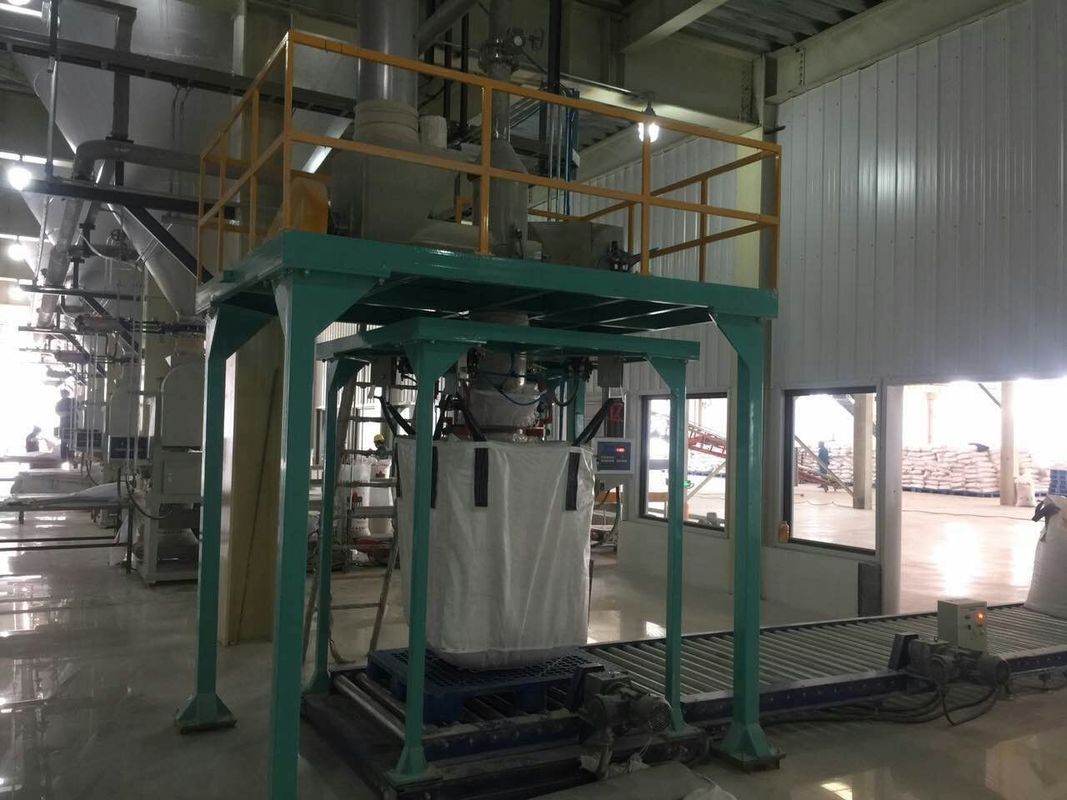

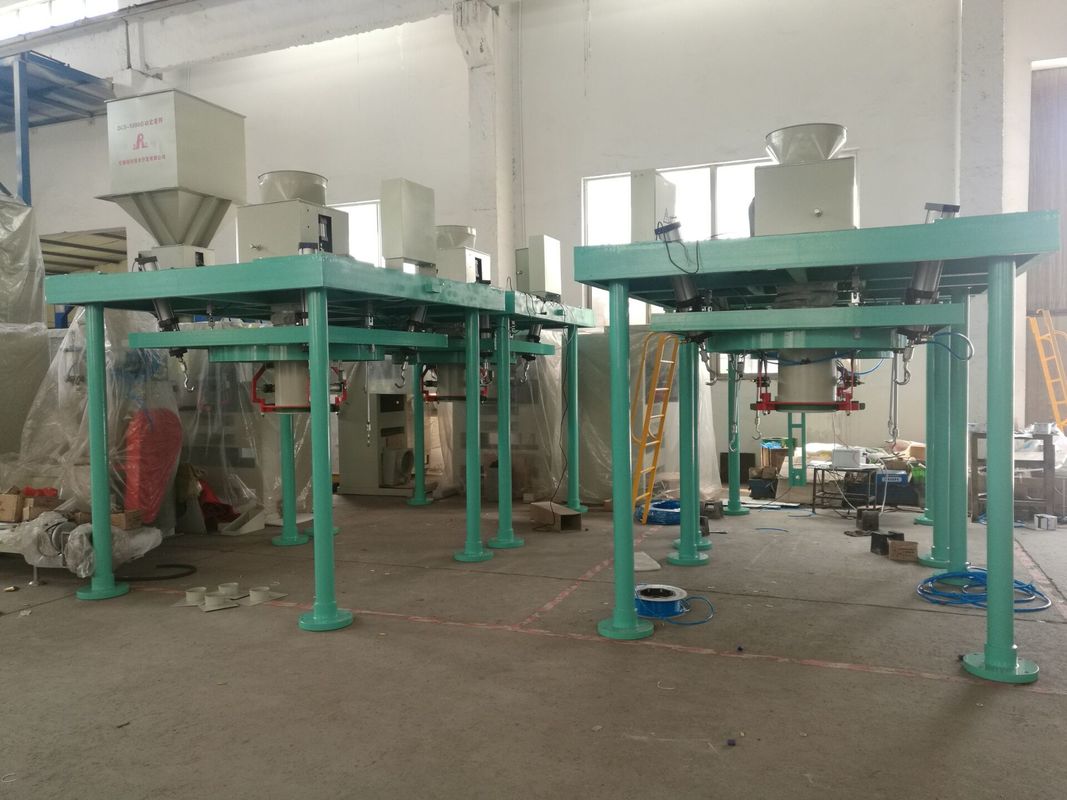

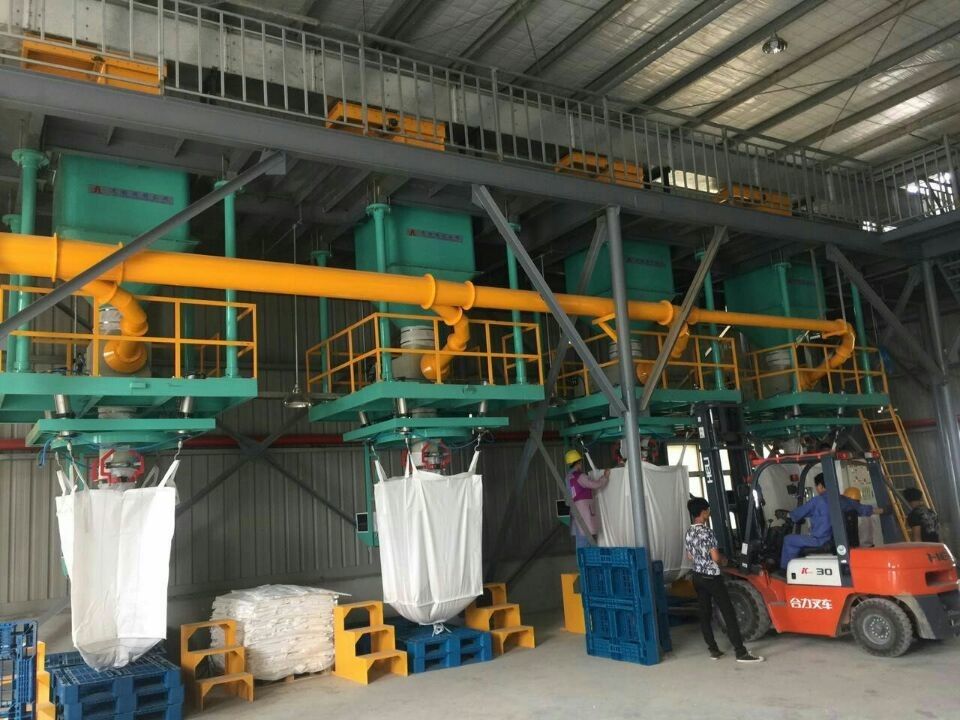

China DCS-1000K Automatic Big Bag Bagging Machine is the new design machine to filling/weighing/packing big bag/fibc bag/ton bag
Hanging Weighing Mode with three weighing scales
Suitable Material:
Feed, Bean, Corn, Wheat, Soybean Meal, Fertilizer, Urea, Chemical Powder/Chemical Granular
Technical parameters:
| Product name | jumbo bag filling machine |
| Weighing accuracy | +/-0.2% |
| Qualified rate of bag weight (%) | 95% for jumbo bag filling machine |
| Output (T/H) | ≥ 10-20 |
|
Power(KW) |
0.5kW~4kW |
| Weight range(KG ) | 500-2000kg and can be adjusted |
|
Production capacity(bags/hr) |
10-25bags/hour |
|
Supply voltage |
380v/220v,50HZ(can customized) |
| Air supply pressure | >=0.6Mpa |
| air consumption CFM | 1m3/min |
| temperature | -20~40°C |
| Working Humidity | <95% (without condensated water) |
Our Advantage
1. Use accuracy of feeding system (Based on detail packing material, Use gravity valve gates or Multi-stage screw feeder )
2. Ensure whole machine life after online sales service .
3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.
4. Easy operation weighing controller with at least 5 years above usage.
Operation process:
Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge->Automatic roller conveyor transportation-->Next Round
Main Structure:
1. Automatic filling system
2. Automatic weighing balance(Mettler-Toledo Load cell)
3. Automatic Ton-bag clipper
4. Automatic rolling conveyor(if needed)
5. Electric control cabinet
Optional:
1. Dust Collector
2. Vacuum heat sealing machine
3. Chain conveyor
Functions and Features
1. Automatic clamp and release the bags.
2. Imported technology weighing controller, Loadcell, pneumatic actuator components.
3. Equipped with high-precision AC power supply to ensure stable and reliable working.
4. Reserved RS232/485 serial port can be used with the external management system for data. communications.
Our products are sold all over the world, you can rest assured.
