Customized Charcoal Packing Machine 2.5 KW Semi - Automatic CE Standard

Customized Charcoal Packing Machine 2.5 KW Semi - Automatic CE Standard

    • Customized Charcoal Packing Machine 2.5 KW Semi - Automatic CE Standard
    • Customized Charcoal Packing Machine 2.5 KW Semi - Automatic CE Standard
    • Customized Charcoal Packing Machine 2.5 KW Semi - Automatic CE Standard
    • Customized Charcoal Packing Machine 2.5 KW Semi - Automatic CE Standard
  • Customized Charcoal Packing Machine 2.5 KW Semi - Automatic CE Standard

    Product Details:

    Place of Origin: China
    Brand Name: Ruili
    Certification: CE
    Model Number: DCS-10C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: USD8000/set
    Packaging Details: Standard Export Wooden Case
    Delivery Time: 20 working days after received your payment
    Payment Terms: L/C,T/T
    Supply Ability: 20 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Dimension(LWH/cm): L2500 W1850 H2100 Application: Coal, Charcoal, Lump Coal, BBQ Charcoal, Gravel
    Bag Size(mm): Customized Voltage: 220V-380V
    Packaging Speed: 150~250 Bags/hour Power: 2.5KW
    Standard: CE Automatic Grade: Semi-Automatic

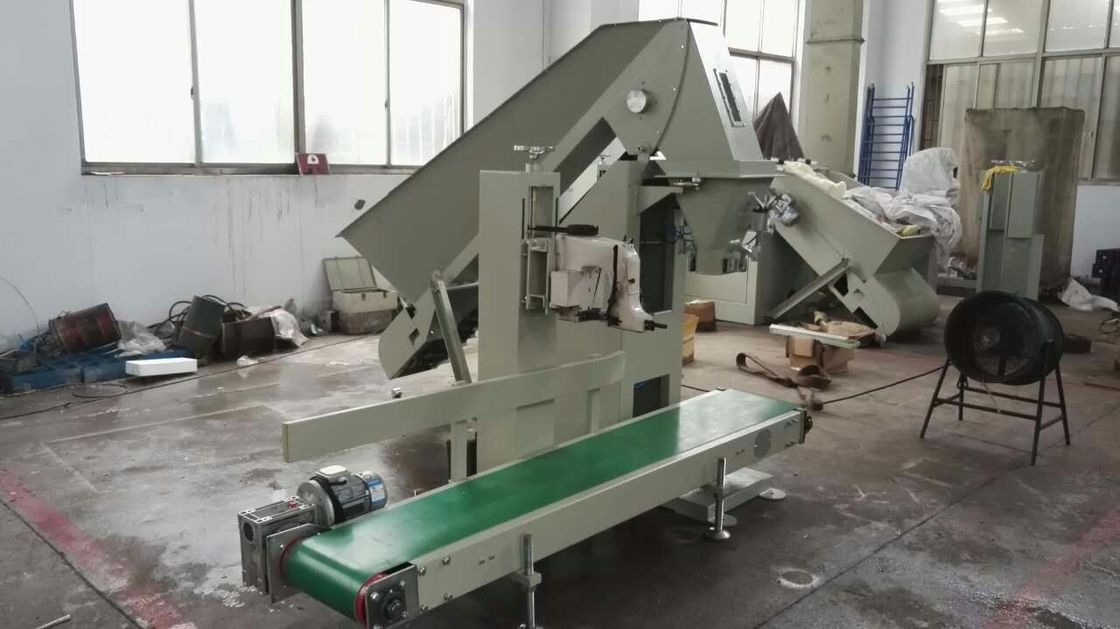

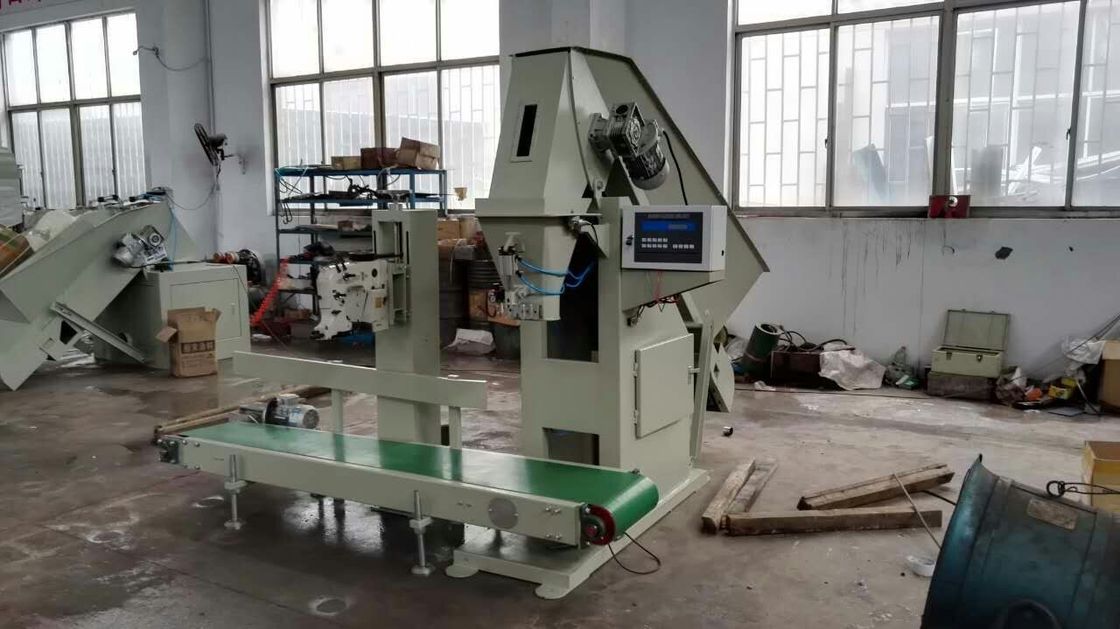

    DCS-10C Automatic Coal Bagger , 200bags / hour Charcoal Packing Machine; Lump Charcoal/ Gravel/ Pressed Coal/BBQ charcoal Bagger



    Customized by request package weight and bag size



    Our Advantage:



    1. Use leading technology of feeding system ,combine inveter to adjust all necessary motor speed.

    2. Ensure whole machine life after online sales service .

    3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.



    Type Weight range Power supply Packing Capacity Request air compassion and consume
    Single spout Gross weighing type 2-10kg or 5-25kg AC220V,380V/50Hz 150-250bags/hour 0.4-0.6Mpa, 0.3M3/hour








    Main Function:

    Automatic filling system and dosing weighing balance(inclined belt feeder)

    Automatic conveyor belt transportation

    Automatic sewing or heat sealing machine(based on bag types)

    Electric control cabinet and weighing controller



    Main operation:

    Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge-->Automatic belt conveyor transportation-->Bag sewed or sealed-->Next Round
