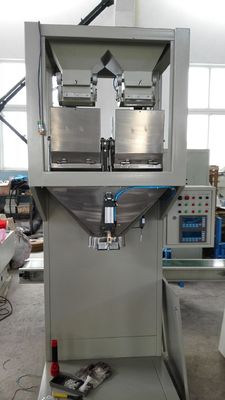

Semi Automatic Granule Packing Machine Seed Bagging Equipment 220V - 380V

Semi Automatic Granule Packing Machine Seed Bagging Equipment 220V - 380V

Semi Automatic Granule Packing Machine Seed Bagging Equipment 220V - 380V

Product Details:

Place of Origin: China
Brand Name: RL
Certification: CE
Model Number: DCS-5*2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: negotiation
Packaging Details: Standard Export Wooden Case
Delivery Time: 20 working days after received your payment
Payment Terms: L/C,T/T
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Dimension(LWH/cm): L6000 W600 H2400 Application: Grain, Food Industry
Bag Size(mm): Customized Voltage: 220V-380V
Packaging Speed: 600~900 Bags/hour Power: 1.5KW
Standard: CE Automatic Grade: Semi-Automatic
High Light:

grain bagging systems

,

Rice Bagging Machine

1kg-10kg ! DCS-5*2 Automatic Seed Bagging Machine; Grain Bagging machine , Granule Packing Machine



Suitable Material:

Seed, Grain, Bean, Rice, Wheat, Sugar, Fertilizer



Technical parameter
Type DCS-5 *2

Power consumption

 1.5 KW

Air gas consumption

0.4 m3/hour

Gas pressure

0.4 ~ 0.6 Mpa
Power Supply

220V 50 -60 HZ

Machine size

 600 * 600 * 2400(mm)

Package Weight and capacity

1-10kg , 600-900bags/hour



Functions and Features



1. Automatic off the bag, Reduce labor intensity.
2. Imported technology weighing controller, Loadcell, pneumatic actuator components.
3. Equipped with high-precision AC power supply to ensure stable and reliable working.
4. Reserved RS232/485 serial port can be used with the external management system for data. communications.
5. Use leading inclined multi-speed belt feeder system, no any jamed spot, will not broken the coal





Our Advantage:



1. Use Vibration Feeder to ensure the accuracy ,will not broken the seed .

2. Ensure whole machine life after online sales service .

3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.









Main Function:

1. Automatic filling system and dosing weighing balance

2. Automatic conveyor belt transportation

3. Automatic sewing or heat sealing machine(based on bag types)

4. Electric control cabinet and weighing controller



Main operation:

Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge-->Automatic belt conveyor transportation-->Bag sewed or sealed-->Next Round
