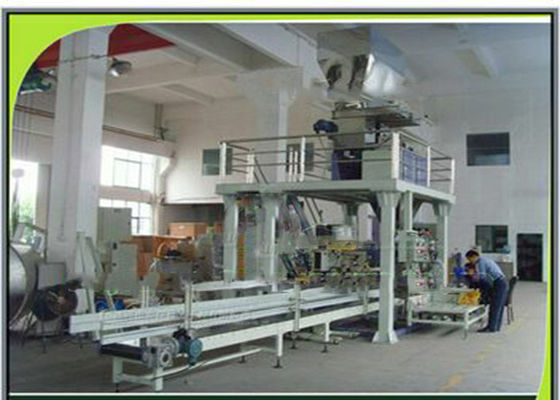

Fully Automatic Weighting Packaging Granular Fertilizer Pellet Packing Machine

Fully Automatic Weighting Packaging Granular Fertilizer Pellet Packing Machine

  • High Light

    wood pellet bagger

    ,

    grain bagging machines

  • Machine Size
    8000*3500*5500mm
  • Suitable Material
    Granular Fertilizer, Urea
  • Power
    8kW
  • Compressed Air
    3m3/hour
  • Package
    Plywood Cases
  • Drive Type
    Pneumatic
  • Place of Origin
    CHINA
  • Brand Name
    RUILI
  • Certification
    CE
  • Model Number
    DCS-50*2
  • Minimum Order Quantity
    1 set
  • Price
    negotation
  • Packaging Details
    Standard Export Plywood Cases
  • Delivery Time
    50 days after receive down payment
  • Supply Ability
    20 sets every month

Fully Automatic Weighting Packaging Granular Fertilizer Pellet Packing Machine

Fully Automatic Bagging Machine , Automatic Pellet Bagging Machine; Automatic Pellet Packing Machine 800-1200bags/hour





Techmical Parameters:

Type

DCS-50*2

Bagging weight range

20-50kg

Packing speed

10-20bags/min

Bag Material

width:400-520mm; length: 550-950mm

Air consumption

1Mpa

Gas consumption

3m³/min

Power voltage

220VAC/380 three phase/50HZ

Power

8Kw



Main Structures:

1. Auto bag placing

2. Auto filling system (belt feeder)

3. Auto weighting balance

4. Auto bag filled

5. Auto bag sealed

6. Electric control cabinet





Advantage:

1. Dual Hopper Weighing System-- with Mettler Toledo Brand Load Cell

2. Use France Schneider brand electric parts

3. Use Taiwan or Japan or Germany pneumatic parts

4. Provide all life online after sales service

5. Machine designed and manufactured based on 8 years+ life.

6. Fully automatic type, no need labor



Whole Introduction for system:

1. The system is suitable for paper bags, woven bags,plastic bags and other packaging materials, widely used in chemical industry, feed, food ,fertilizer and other industries.

2.  Can be suitable for 20-50kg bag packaging, with up to max 1200bags/hour capacity.

3.  Automatic bag device adapt to high-speed continuous operation.

4.  The execution unites are equipped with control and safety devices,automatic continuous operation.

5.  Using SEW motor drive unite can play higher performance.

6.  Proposed matching KS series heat sealing machine work to ensure beautifual bag, anti-leakage, airtight.



Automatic packing machine process:

1.  Automatic for the bags-->2 aligned horizontally opposed bags disk can store about 200 empty bags( storage capacity due to the thickness of the air bag varies), take the bags from the suction cup device to a device for bags. When the empty bag after taking a unit, set the bag tray next unit automatically switches to take the bag position to ensure continuous operation of the device.

2.  Bag--bit integer-->to adjust the overall position of the bag.

3.  Empty bag extraction-->extraction bag bit plastic plate over the bag.

4.  Lateral movement-->empty bag gripped by the clip below spout body bags, cutting open the door into the pouch feed.

5.  Empty bag open-->empty bag after moving to the feed opening position, open the bag by the vacuum suction.

6.  Bag feeding device-->empty bag gripped by the clip below spout body bags, cutting open the door into the pouch feed.

7. Transition hopper+secondary materials door-->hopper for the transition section between the weighing machine and packaging machines, the main function of the secondary material is next door from the slow process of material  action to reduce air content material.

8.  After the bag bottom slap device-->filling material, this means slap bottom of the bag, so that the bag material fully implemented.

9.  Solid lateral movement and the bag holding the bag inductions-->real bags from the spout to put on stand -up pouches conveyor, by the bag holding means holding the bag delivered to the sealing.

10. Stand-up pouches conveyor-->real bags whereby the conveyor at a constant speed of delivery to the downstream, height--adjustable handle height adjustable conveyor.

11. Transition conveyor-->with different device height of perfect butt.
