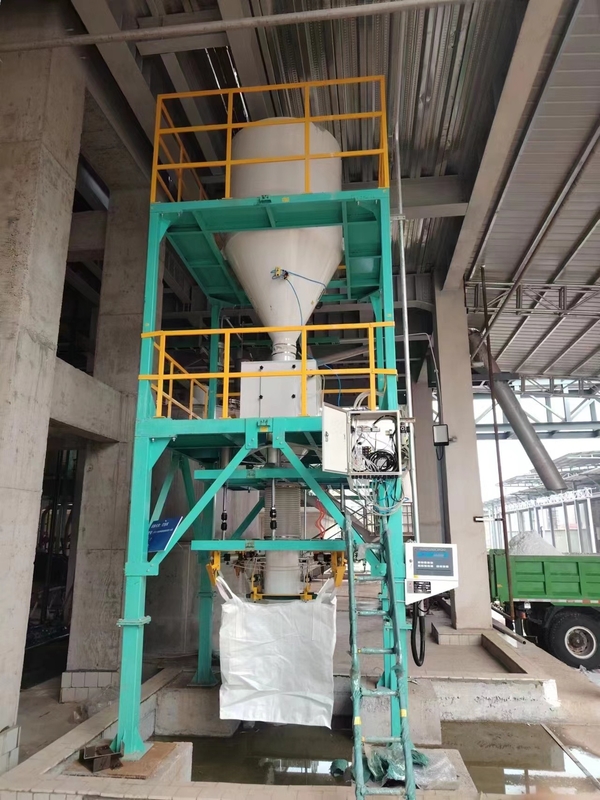

Big Bag Filling Machine; Big Bag Weighing Machine, Ton bag packing machine

Gross weighing mode big bag filling/ weighing/packing machine

Suitable for all kinds of granular/powder/block/pellet/flake etc solid bulk materials.

Feeding system --gravity valve feeder/ Multi-stage screw feeder / Multi-stage belt feeder .

Technical Parameters:

• Capacity--5-40bags TPH(depends on bulk density and flow ability)
• Precision--+/-0.2%
• Weighing scale--500kg-1500kg (can be customized)
• Power supply--AC220V/AC380V,50HZ(can be customized)
• Request air input-- 0.5-0.6Mpa, 5-15m3/hour

Flowing Process:

Manual bag placing, touch the switch, the clamp device auto clamp the bags -->Materials be Auto filling and Auto weighing into bags-->the four big cylinders up and down the big bags to compact the materials into the bags(this function can set times and time on the weighing controller) -->Auto bag discharge and hooks released onto the pallet--> use forklift or conveyor to transport the weighed big bags out of the weighing machine-->Next round
