Gravel Bag Filling Machine , Sand Packing Machine Low Power Consumption

Gravel Bag Filling Machine , Sand Packing Machine Low Power Consumption

  • High Light

    jumbo bag filling machine

    ,

    fruit packaging machine

  • Voltage
    380V/50HZ
  • Driven Type
    Pneumatic
  • Packaging Type
    Bags
  • Automatic Grade
    Semi-Automatic
  • Condition
    New
  • Weight
    1500KG
  • Place of Origin
    CHINA
  • Brand Name
    Ruili
  • Certification
    CE
  • Model Number
    DCS-50 S
  • Minimum Order Quantity
    1 SETS
  • Price
    USD8721~USD17290
  • Packaging Details
    PLYWOOD CASES
  • Delivery Time
    20 DAYS AFTER DEPOSIT
  • Supply Ability
    15 SETS PER MONTH

Gravel Bag Filling Machine , Sand Packing Machine Low Power Consumption



1500-1800bags.hour  Sand Bagging Machine; Sand with gravel bag filling machine





Suitable materials: Sand, gravel, stones,aggregates,sawdust etc

Weighing mode can be option:

  • volumn + weighing mode--accuracy :1%-2.5%
  • pure weighing mode--accuracy:0.2%-0.5%

This machine consists three parts:

  • 8m3 Storage hopper with vibration device + belt feeding system+ weighing control system+bag clamp system
  • Auto sewing machine
  • Auto belt conveyor
  •

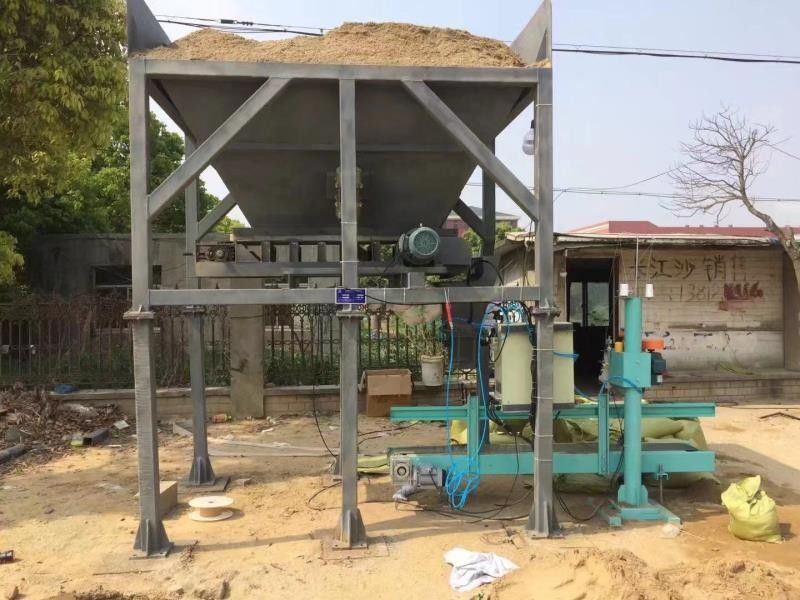

Gravel Bag Filling Machine , Sand Packing Machine Low Power Consumption 0

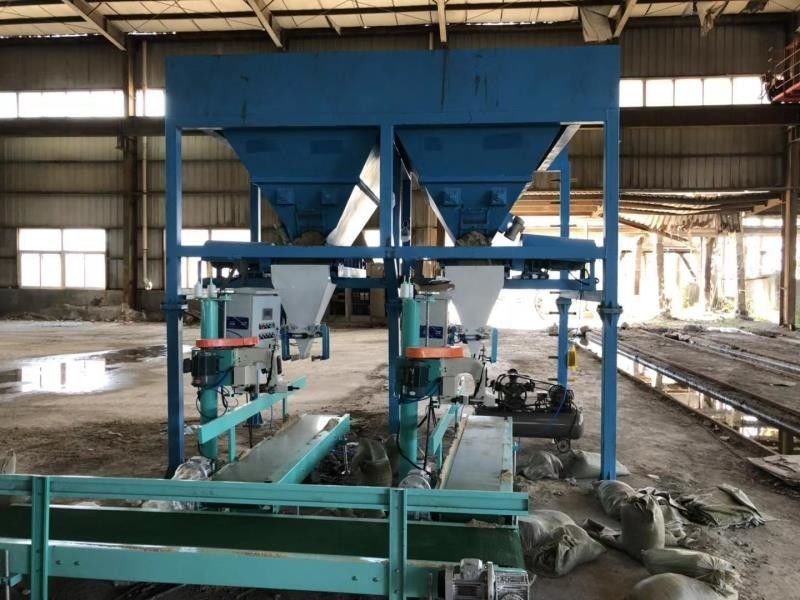

Gravel Bag Filling Machine , Sand Packing Machine Low Power Consumption 1Gravel Bag Filling Machine , Sand Packing Machine Low Power Consumption 2



Technical Parameters:

Power Supply and Power Consume  380V/50Hz, 10Kw per hour
Request Air and air consume >0.6Mpa, 0.6m3/hour
Weighing Scale  10-50kg
Packing Capacity

1500-1800bags/hour with volumn mode;

300-400bags/hour with weighing mode



Options:

  • Single Head Bagging machine with 5m3 storage hopper
  • lift transport bags conveyor
  • Palletizing system
