|Place of Origin:||China|
|Model Number:||DCS-20 MT|
|Minimum Order Quantity:||1 Set/Sets|
|Packaging Details:||Standard Export Wooden Case|
|Delivery Time:||20 working days after received your payment|
|Supply Ability:||20 Set/Sets per Month|
|Dimension(LWH/cm):||L2500 W1800 H2200||Application:||Construction; Energy|
|Packaging Speed:||200bags/350bags/600bags Per Hour||Power:||2.5-4KW|

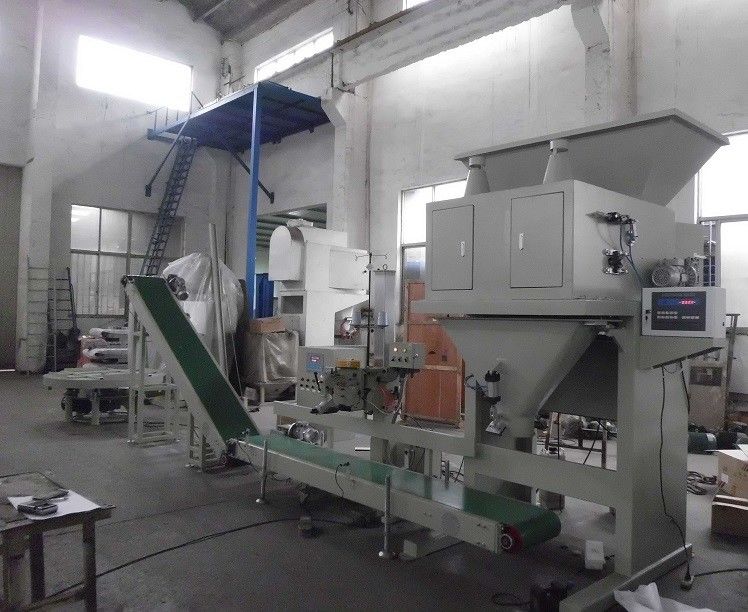

High Accuracy Aggregate/Rock/Hard Gravel Bagging System
Granite Aggregates, Pebble, Stone, Gravel , Small Briquettes etc.
Functions and Features
1. Two parts feeders ---big multi-stage belt feeder +small multi-stage belt feeder ensure more well good accuracy
2. Self-developed Weighing Controller, easy setting parameters and have over ten alram code which can help us to lead customer solve the problems in short time
3. Equipped with high-precision AC power supply to ensure stable and reliable working.
4. Reserved RS232/485 serial port can be used with the external management system for data. communications.
5. Full series /capacity could be choose, can customized for you only!
|Precision||:+/-2-3 material weight ;0.2-0.5%|
|Packing speed||: 200bags /350bags/600bags per hour|
|Weighing scale||: 10-50kg per bag ,can customized|
|Power Supply||: 220Va.c and 4N-380Va.c|
|Power Dissipation||: 2.5-4kW|
|Compressed Air||: >=0.6MPa|
|Compressed Air Consume||: 0.4m3 / per hour|
1. Use multi-stage belt feeding system ,combine inveter to adjust all necessary motor speed.
2. Ensure whole machine life online sales service .
3. We ourselves file the programme of weighing controller, ensure most easlist operation and setting parameters.
Manual place the bags into clamp bar-->Automatic filling and dosing-->Automatic bag discharge-->Automatic belt conveyor transportation-->Auto Bag sewed or sealed-->Next Round
